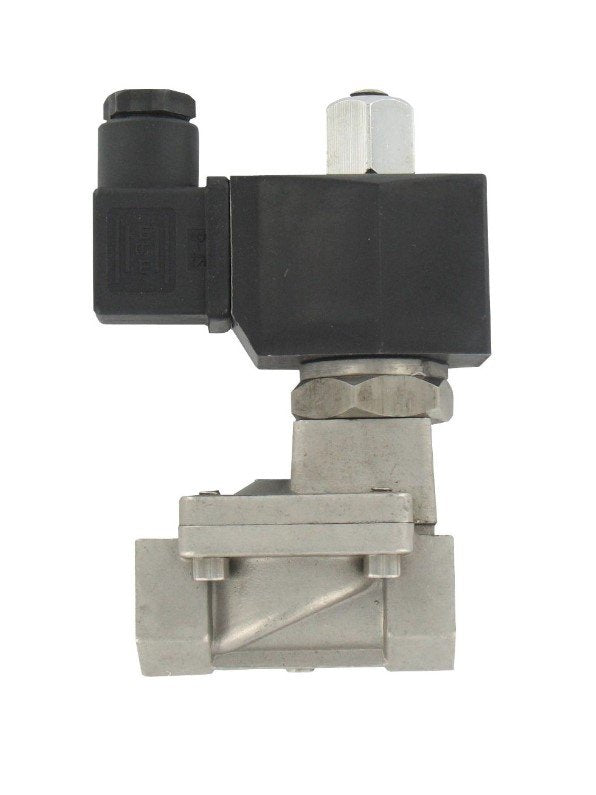

Dwyer SSV-S2F3 | Stainless Steel Solenoid Valve | 2-Way NO, 1/4" NPT, 24 VAC
Part Number : SSV-S2F3
For on/off control of air, gas or water in 1/4" NPT pipework, the Dwyer SSV-S2F3 two-way solenoid valve combines a 316 stainless steel body with a 24 VAC coil. It is normally open and operates between 0 to 6 bar in this 1/4" version, and the FKM seal handles process temperatures to 120°C.
- Body 316 SS, spring 304 SS, connections 1/4" female NPT
- Pressure range 0 to 6 bar for the 1/4" 316 SS size; maximum 12 bar
- 120°C maximum process temperature with FKM seal at 1/4"
- DIN-connected 24 VAC coil for the 1/4" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S2F3 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.39 kg (0.86 lb)
