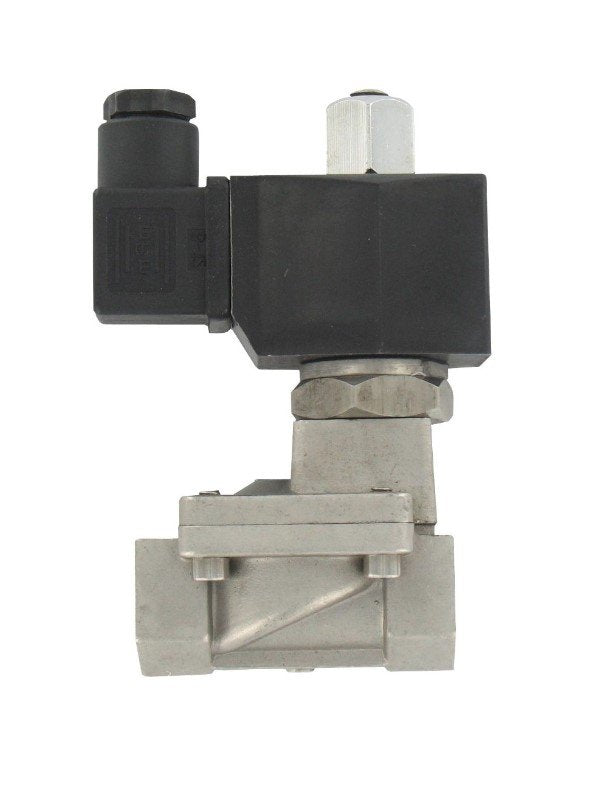

Dwyer SSV-S3F4 | Stainless Steel Solenoid Valve | 2-Way NO, 3/8" NPT, 24 VDC
Part Number : SSV-S3F4
Sized at 3/8" NPT and wound for 24 VDC, the SSV-S3F4 is a two-way Dwyer solenoid valve with a 316 stainless steel body for air, gas and water. It is normally open and covers 0.5 to 8 bar of operating pressure through the 3/8" body, and the fitted FKM seal is good for process media to 120°C.
- 3/8" female NPT connections; 316 SS body; 304 SS spring
- Rated 0.5 to 8 bar at 3/8" (316 SS), with a 12 bar maximum operating pressure
- For 3/8" lines: FKM seal, 120°C process limit
- NEMA 13 (IP54) solenoid enclosure with 24 VDC DIN coil, 3/8" 316 SS version
- SSV-S3F4 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.95 kg (2.09 lb)
Free UAE shipping available
For pricing, please contact our experts.
