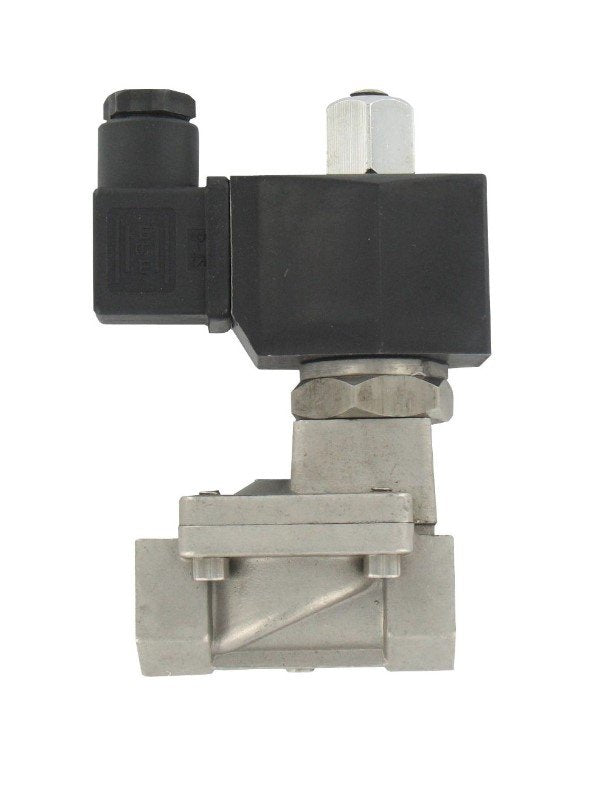

Dwyer SSV-S7F1 | Stainless Steel Solenoid Valve | 2-Way NO, 1-1/4" NPT, 110 VAC
Part Number : SSV-S7F1
Dwyer's SSV-S7F1 pairs a 1-1/4" NPT 316 stainless steel valve body with a 110 VAC DIN-connected coil for two-way switching of air, gas or water. It is normally open and works from 0.5 to 8 bar at the 1-1/4" size, and its FKM seal suits process temperatures up to 120°C.
- 1-1/4" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 1-1/4" 316 SS body: 0.5 to 8 bar, maximum 12 bar
- FKM seal on the 1-1/4" valve, process temperature to 120°C
- 110 VAC coil with DIN connector on the 1-1/4" 316 SS valve; NEMA 13 (IP54) enclosure
- SSV-S7F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 2.80 kg (6.16 lb)
Free UAE shipping available
For pricing, please contact our experts.
