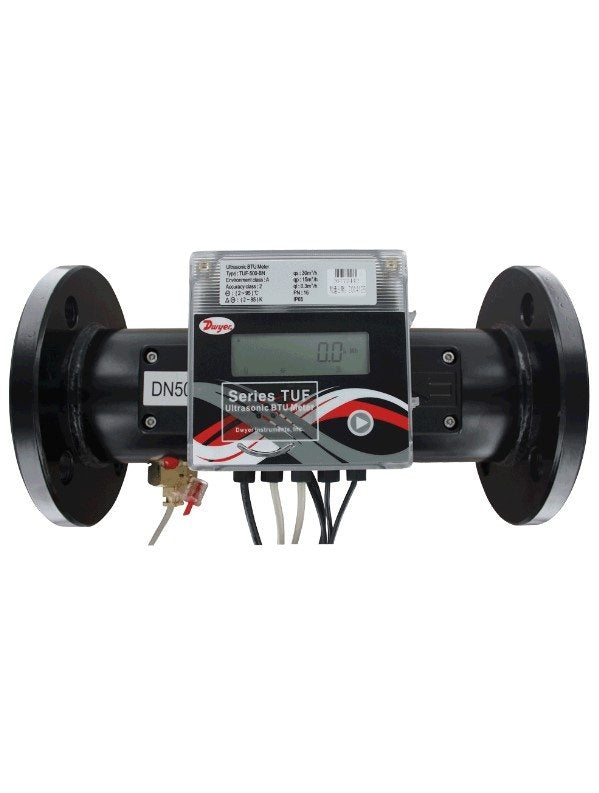

Dwyer Instruments TUF-1250-BN | Tenant ultrasonic BTU flowmeter | DN125 pipe size and 100 m3/h permanent flow rate with BACnet® communication

Name: Dwyer Instruments TUF-1250-BN | Tenant ultrasonic BTU flowmeter | DN125 pipe size and 100 m3/h permanent flow rate with BACnet® communication
Brand: Dwyer
SKU: TUF-1250-BN
Availability: OutOfStock

Part Number : TUF-1250-BN

Using ultrasonic technology to detect heating and cooling energy consumption, the Model TUF-1250-BN Ultrasonic Energy Meter is an extremely precise and stable energy meter. Installing the Series TUF on boilers and chillers is a brilliant idea since it is a small meter that doubles as an energy calculator and flowmeter in one.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	BTU: EN1434/CJ128 Class 2 Flow: +/-(2+(0.02 Qp / Q))% Temperature: +/-0.1°C
Approvals	CE
communication	Serial: Modbus® RTU or BACnet MSTP (selectable)
Connection	Electrical: 3' (0.91 m) 4x0.2 mm2 cable with terminal block
Connection	Meter: Flange
Display	8-digit LED
ENCLOSURE MATERIAL	Plastic
Enclosure Rating	IP65
Flow Direction	Unidirectional
Humidity	Limit: <93%
Manufacturer	Dwyer Instruments
Material	Wetted: Brass and 316L SS
Maximum Operating Pressure	232 psi (16 bar) for DN15 to DN40 362 psi (25 bar) for >DN50
Maximum operating temperature	Ambient: 41 to 131°F (5 to 55°C) Process: 36 to 203°F (2 to 95°C)
Mounting	Orientation: Horizontal or vertical
POWER CONSUMPTION	1 W
Power	24 VDC/VAC (model dependent) or 3.6 V ER26500 lithium metal battery, user supplied and installed, battery acts as back-up if power is lost
PRESSURE	Drop: <1.5 psi (10 kPa)
Range	Flow: 440 (1667)
Repeatability	Flowmeter: 1%
Type	Tenant ultrasonic BTU flowmeter
Weight	21.1 (9.6)

With no moving components and a local parameter display, maintenance expenses are reduced.
Data transmission with serial communication output standard that is seamless.
Combined flow and temperature monitoring in one device eliminates the need for separate ones.
