Dwyer Instruments TVA24014 | All fluoropolymer Flowmeter | 125 mm scale | 3/4" female NPT | Flow rate 11.9 GPM (45 L/min) water

Name: Dwyer Instruments TVA24014 | All fluoropolymer Flowmeter | 125 mm scale | 3/4" female NPT | Flow rate 11.9 GPM (45 L/min) water
Brand: Dwyer
SKU: TVA24014
Availability: OutOfStock

Part Number : TVA24014

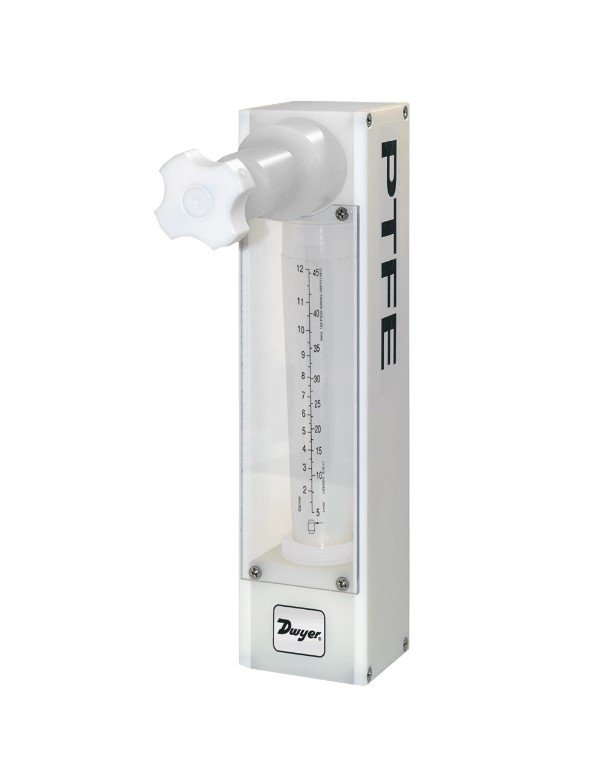

The Fluoropolymer Flowmeters Model TVA24014 are perfect for applications involving corrosive or very pure liquids. The graduations on this series of flowmeters range from 0 to 10, which represents a discrete flow rate.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute)
Leak Integrity	1 x 10-7 sccs of Helium
Manufacturer	Dwyer Instruments
Material	Wetted: Flowtube: PFA Float and end fittings: PTFE Guide rods: PCTFE
Maximum Operating Pressure	100 psig (6.9 bar)
Maximum operating temperature	250°F (121°C)
Mounting	Vertical
Ratio	Turn-down: 10:1
Repeatability	+/-0.25%
Scale	Direct reading, 75 mm or 125 mm lengths
Turn-down Ratio	10:1
Type	All Fluoropolymer Flowmeters

Made specifically to work with a variety of chemicals and be compatible with high purity or corrosive liquid applications.
All of the fluoropolymer materials used in the construction of the flowmeters improve their resistance to corrosion and guarantee their compatibility with a wide range of harsh chemicals.
Allows for simple and accurate flow rate monitoring with a 0 to 10 scale and graduations that represent discrete flow rates.

Dwyer Instruments TVA24014 | All fluoropolymer Flowmeter | 125 mm scale | 3/4" female NPT | Flow rate 11.9 GPM (45 L/min) water

DOWNLOAD CATALOG
