Dwyer Instruments TVA24112 | All fluoropolymer Flowmeter | 125 mm scale | 3/4" female NPT | Flow rate 7.93 GPM (30 LPM) water
The Fluoropolymer Flowmeters Model TVA24112 are perfect for applications involving corrosive or very pure liquids. The graduations on this series of flowmeters range from 0 to 10, which represents a discrete flow rate.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute) |
Leak Integrity | 1 x 10-7 sccs of Helium |
Manufacturer | Dwyer Instruments |
Material | Wetted: Flowtube: PFA Float and end fittings: PTFE Guide rods: PCTFE |
Maximum Operating Pressure | 100 psig (6.9 bar) |
Maximum operating temperature | 250°F (121°C) |
Mounting | Vertical |
Ratio | Turn-down: 10:1 |
Repeatability | +/-0.25% |
Scale | Direct reading, 75 mm or 125 mm lengths |
Turn-down Ratio | 10:1 |
Type | All Fluoropolymer Flowmeters |
- Made specifically to work with a variety of chemicals and be compatible with high purity or corrosive liquid applications.
- All of the fluoropolymer materials used in the construction of the flowmeters improve their resistance to corrosion and guarantee their compatibility with a wide range of harsh chemicals.
- Allows for simple and accurate flow rate monitoring with a 0 to 10 scale and graduations that represent discrete flow rates.
Related Products

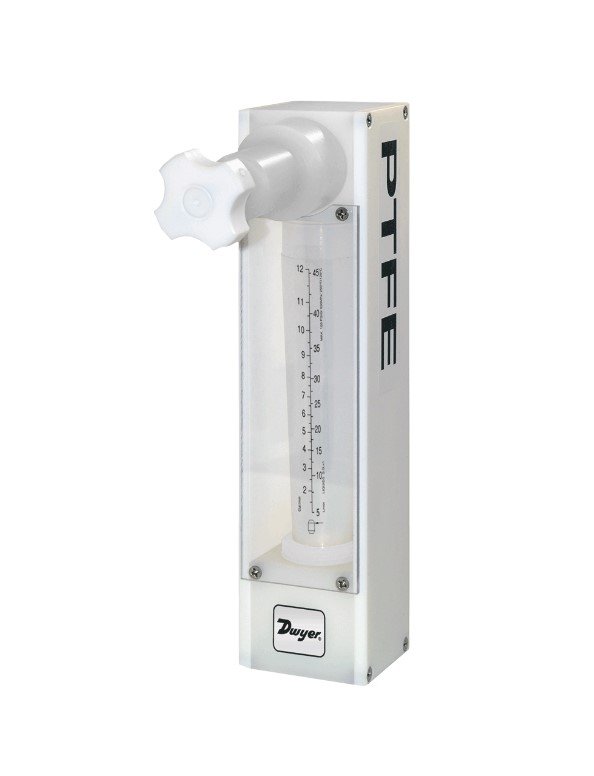

Dwyer Instruments TVA24114 | All fluoropolymer Flowmeter | 125 mm scale | 3/4" female NPT | Flow rate 11.9 GPM (45 LPM) water
