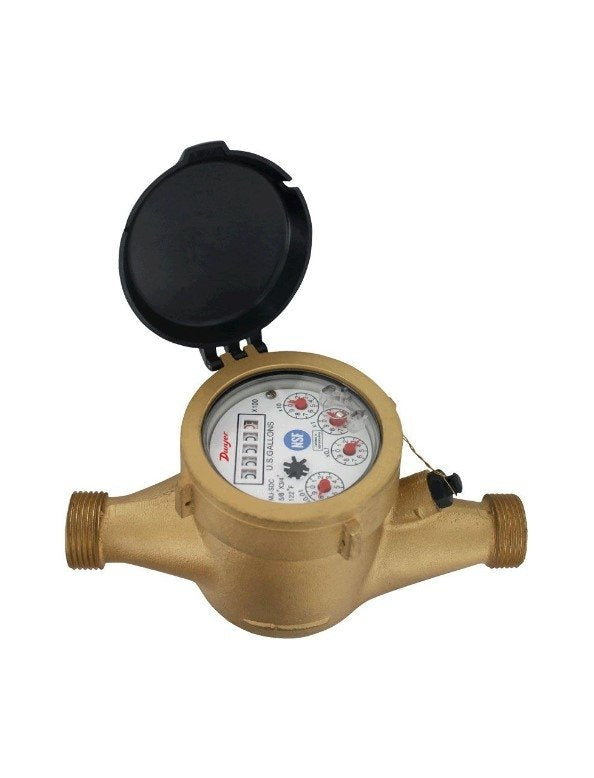

Dwyer Instruments WNT-A-C-08-10 | Multi-Jet water meter | 2" pipe size | NSF Certified | Brass body with 10 gal pulse output
A range of mechanical water totalizing meters that show the total amount of water used in gallons or cubic meters is the Series WNT, Model WNT-A-C-08-10 Multi-Jet Brass Body Water Meter. They come with NPT or BSPT couplings and come in a variety of body sizes. Its NSF certified, lead-free body is perfect for applications using potable water.
- Specifications
- Features
- Downloads
| Accuracy | Transitional Flow: +/-3% Nominal Flow: +/-1.5% |
| Approvals | NSF |
| Connection | Electrical: Color-coded lead wires, 4.5' (1.5 m) long |
| Manufacturer | Dwyer Instruments |
| Material | Wetted: Body: ECO BRASS® Couplings: ECO BRASS® Measuring Chamber: ABS Plastic |
| Maximum Operating Pressure | 150 psi (10 bar) |
| Maximum operating temperature | 122°F (50° C) |
| Mounting | Orientation: Horizontal with register facing up |
| Output Signal | Pulse output with frequency proportional to flow rate |
| Pulse Options | 0.1 gal, 1 gal, 10 gal, 100 gal per pulse. |
| Range | Max Flow: 160 |
| Range | Nominal Flow: 8 to 160 |
| Range | Transitional Flow: 2 |
| Rating | Electrical: 0.01 A @ 24 VAC/DC |
| Totalizing Display Maximum | See model chart. |
| Type | Multi-jet Water Meter |
| Weight | 13.23 [6] lb [kg] |
- It is perfect for no lead requirements because of its NSF/ANSI 61 clearance.
- Even in low flow applications, multi-jet architecture offers side flow range accuracy and simplicity.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
