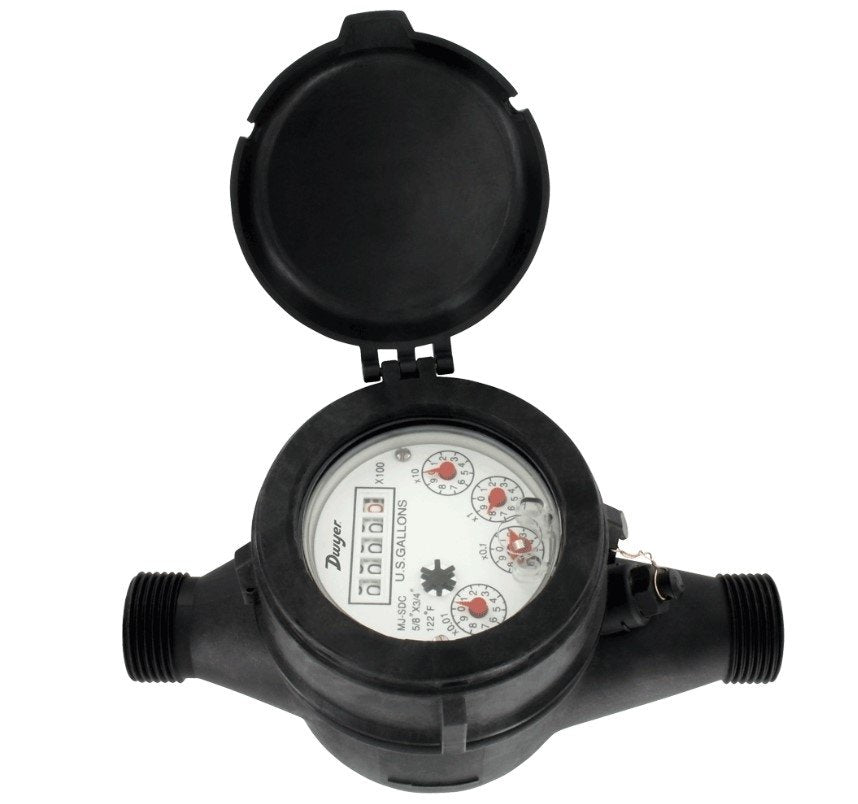

Dwyer Instruments WPT-B-C-09-10 | Multi-Jet plastic water meter | 32mm pipe size with 10 liter pulse output
A range of mechanical water totalizing meters, the Model WPT-B-C-09-10 Multi-Jet Plastic Water Meter shows the total amount of water used in gallons with choices for m3. They come with optional NPT or BSPT couplings and come in a variety of body sizes. The plastic body water meters are suitable for use in situations requiring potable water, in some corrosive conditions, or when a low-cost water totalizer is needed.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | WPT-A-X-XX: Transitional Flow: +/-3% Nominal Flow: +/-1.5% |
Connection | Electrical: Color-coded lead wires, 4.5' (1.5 m) long |
Manufacturer | Dwyer Instruments |
Material | Wetted: Body: Nylon 66 Couplings: Nylon 66, 1-1/2" (40 mm) sizes lead free ECO BRASS® Measuring Chamber: ABS Plastic |
Maximum Operating Pressure | 150 psi (10 bar) |
Maximum operating temperature | 122°F (50°C) |
Mounting | Orientation: Horizontal with register facing up |
Output Signal | Pulse output with frequency proportional to flow rate |
Pulse Options | 0.1 gal, 1 gal, 10 gal, 100 gal per pulse (1 L, 10 L, 100 L, 1000 per pulse) See model chart. (Consult factory for m3, BSPT units or additional pulse output options) |
Rating | Electrical: 0.01 A @ 24 VAC/DC |
Totalizing Display Maximum | See model chart. |
Type | Multi-jet Plastic Water Meter |
- Plastic body perfect for lead-free standards.
- Even in low flow applications, multi-jet design offers simplicity and precision throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are supplied, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
