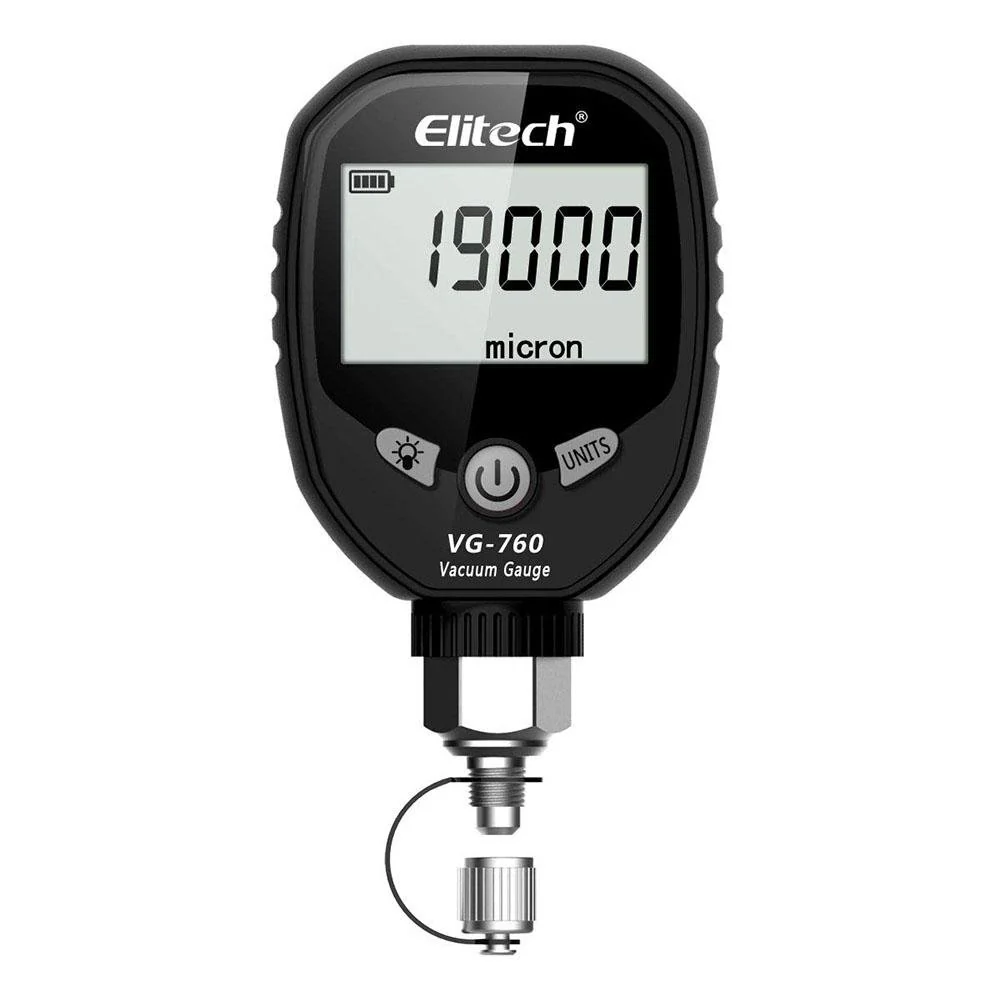

Elitech VG-760 | Digital Micron Vacuum Gauge | Measuring Range: 0-19000 micron
A digital vacuum gauge called the VG-760 is used to measure vacuum precisely when filling refrigerants. It has an expert vacuum sensor for accurate vacuum testing. The purpose of an HVAC and refrigeration system's evacuation is to remove any moisture and air from the system, as these elements can react chemically with refrigerants and cause long-term harm to the system. In general, for the system to efficiently remove moisture, the system vacuum should be lower than 700 microns. A 300 micron vacuum is the best. This need cannot be met by common refrigerants. The VG-760 is a tool for determining vacuum pump quality and testing system leaks.

Free UAE shipping available
- Specifications
- Features
Accuracy | +/-10% or +/-10 Micron |
Battery Life | 300 hours |
Connection | 1/4'' Male Flare |
Dimensions | 5''*3''*1.5''(127x74x37 mm) |
Measuring range | 0-19000 micron |
Operating Temperature | 0¢ž¢°~140¢ž¢°(-178°C~60°C) |
Power Supply | 3 AA batteries, |
Resolution | 0-400 1 Micron; 400-3000 10 Micron; 3000-10000 100 Micron; 10000-19000 250 Micron |
- New brand vacuum gauge
- Multiple units
- Wide measuring range
- Battery indicator and long battery life
- Rubberized water-resistant housing (IP65 Rated)
