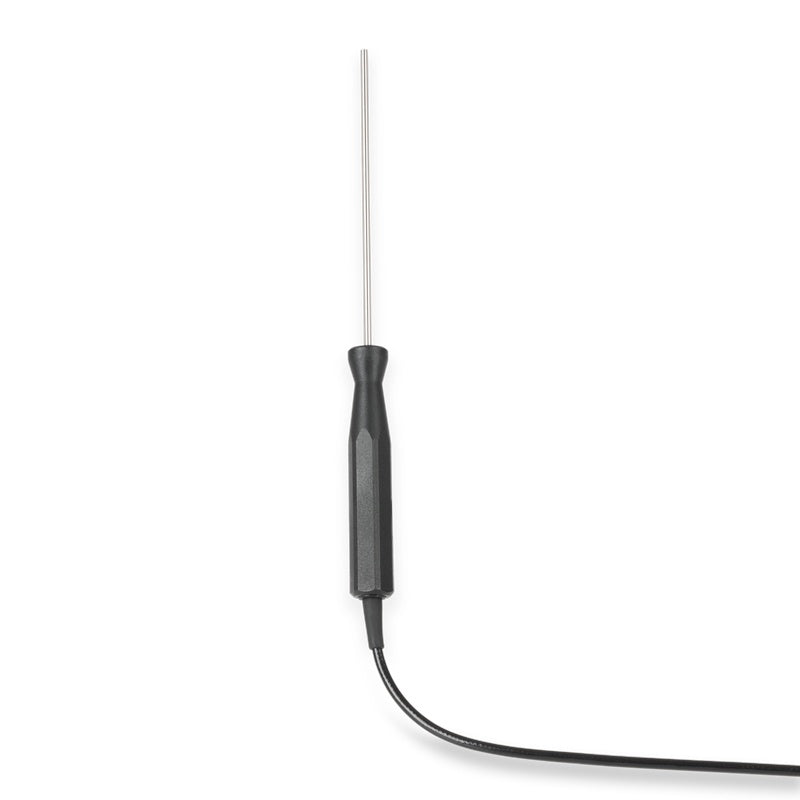

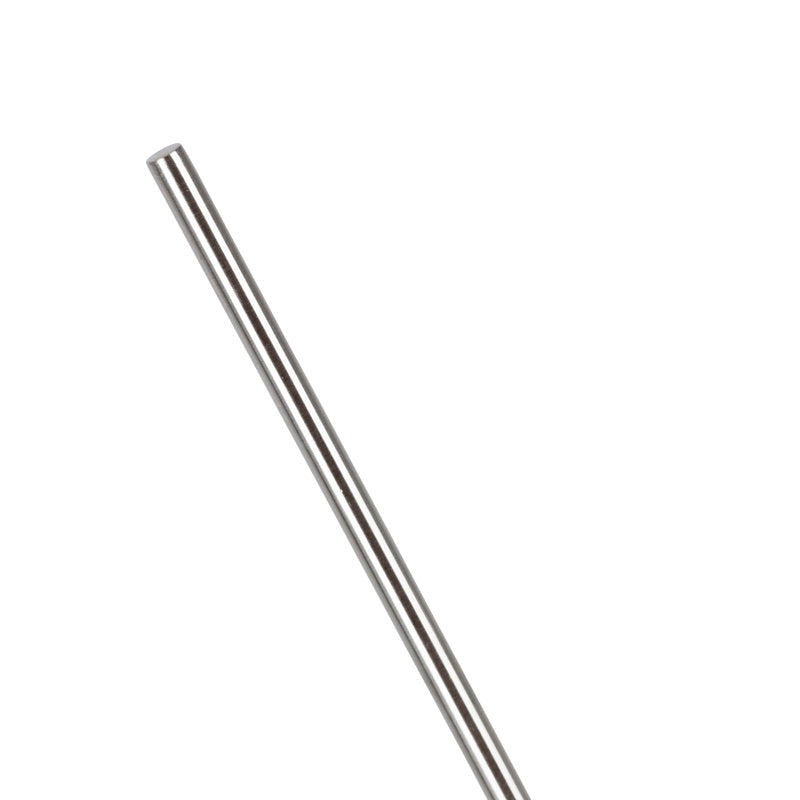

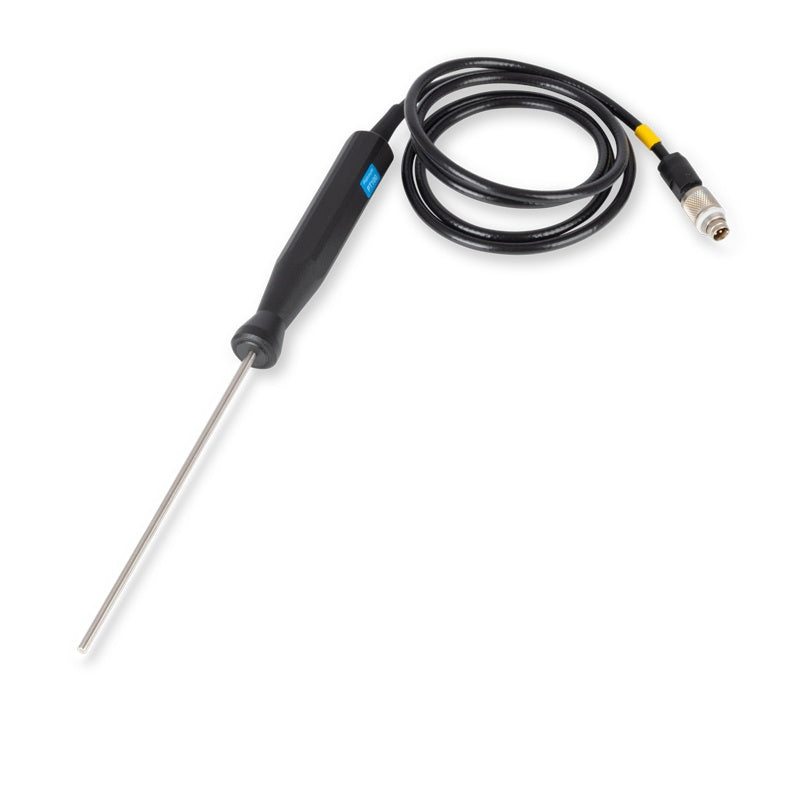

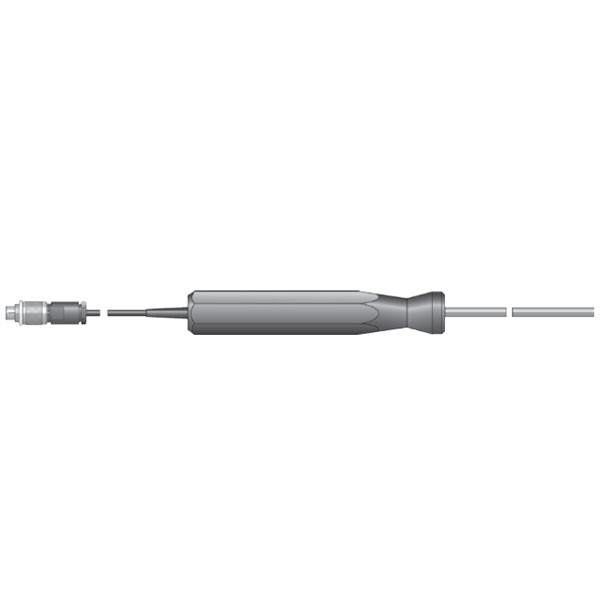

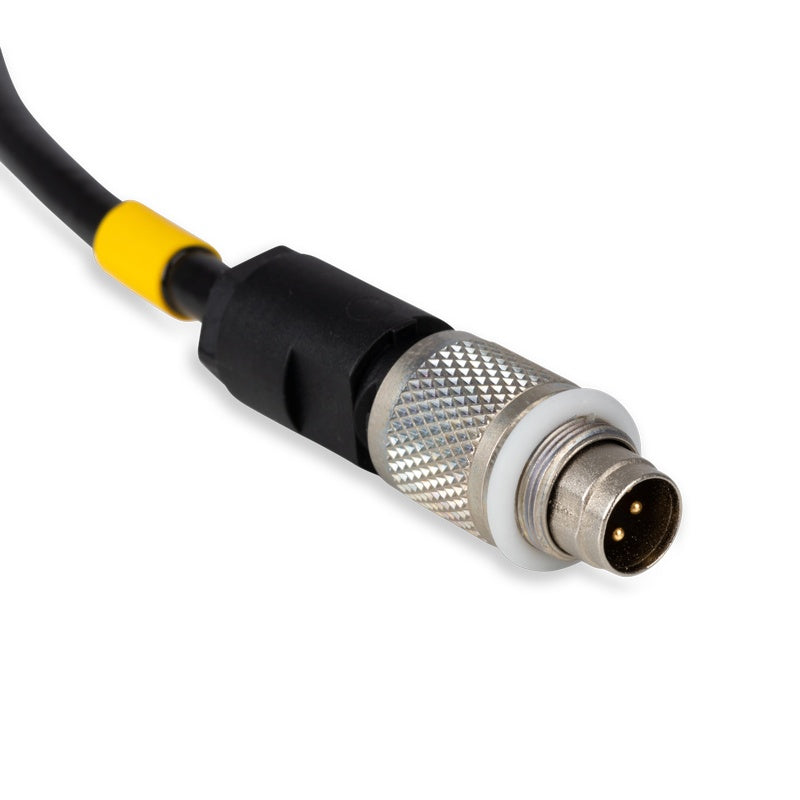

ETI 160-222 | PT100 1/10 DIN Liquid Probe | Ø3.3 x 130 mm, -200 to 300 °C
The ETI 160-222 is a 1/10 DIN PT100 liquid probe for the Precision Plus thermometer, with a slim Ø3.3 x 130 mm stem for high-accuracy immersion work. It covers -200 to 300 °C, with accuracy of ±0.03 °C ±0.1 % between -100 and 200 °C and ±0.2 % beyond that band, and responds in under 4 seconds.
Key features
- PT100 1/10 DIN element
- Made for the Precision Plus thermometer
- Slim Ø3.3 x 130 mm stem
- Range -200 to 300 °C
- ±0.03 °C ±0.1 % from -100 to 200 °C
- Specifications
- Downloads
| Part Number | 160-222 |
| Brand | ETI |
| Sensor Type | PT100 1/10 DIN |
| Temperature Range | -200 to 300 °C |
| Accuracy | ±0.03 °C ±0.1 % (-100 to 200 °C), otherwise ±0.2 % |
| Response Time | Less than 4 seconds |
| Probe Dimensions | Ø3.3 x 130 mm |
| For Use With | ETI Precision Plus |
