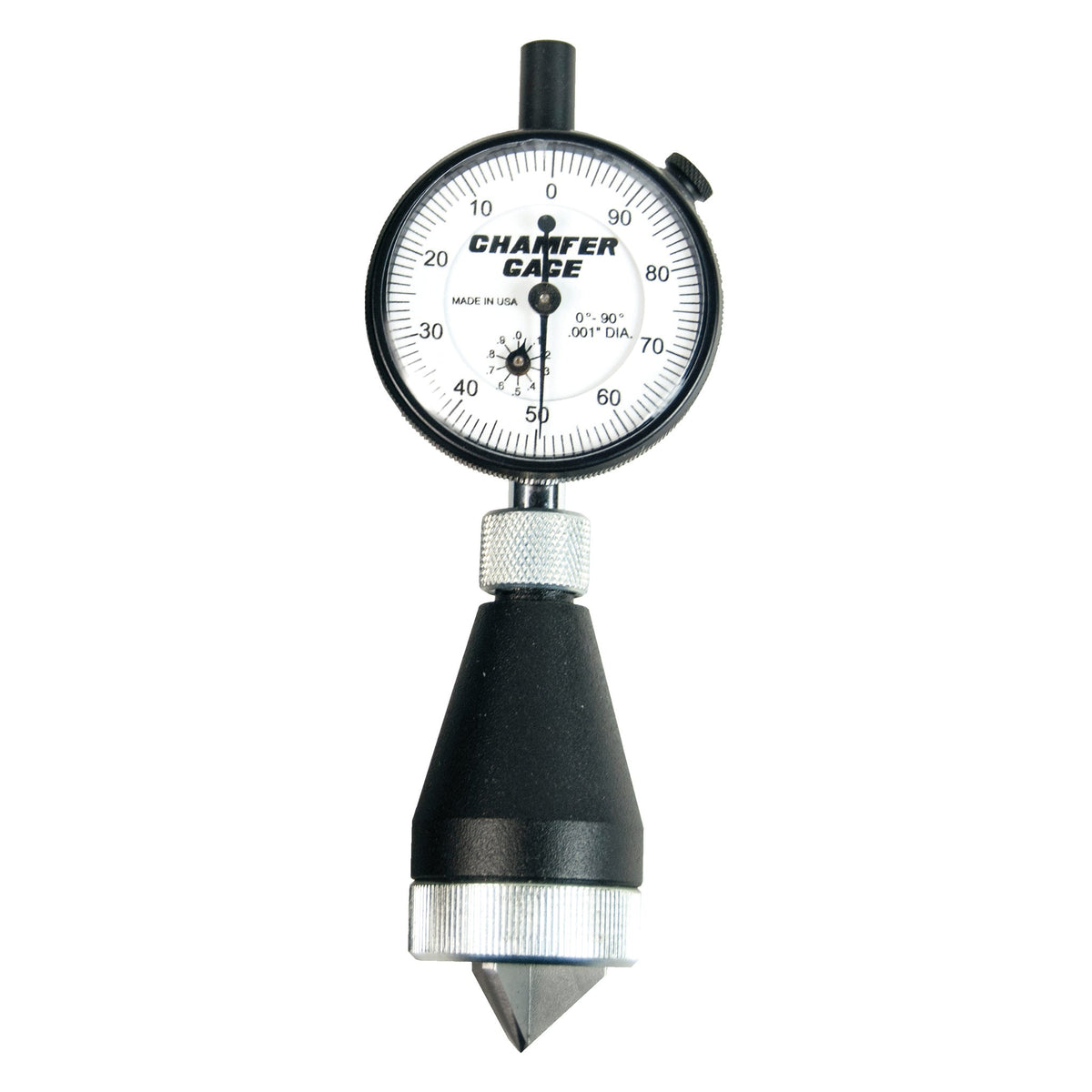

Flexbar 16341 | Chamfer Gauge | 0-90°, 1-2 in
Part Number : 16341
With a capacity of 1-2 in and an angle range of 0-90°, the Flexbar 16341 chamfer gauge gives an instant diameter reading on chamfers and tapered holes, in inch units to 0.001 in. It is intended for quality-control checks on the shop floor without separate setting masters.
Key features
- Capacity 1-2 in, angle range 0-90°
- Direct diameter reading to 0.001 in
- Zeroed on a surface plate; no setting masters needed
- Hardened, precision-ground three-blade steel plunger for repeatable readings
- For tapered holes whose included angle is less than the angle printed on the dial
To measure, hold the gauge just above the large body diameter, insert the plunger into the hole, press firmly against the part and twist slightly to centre it.
