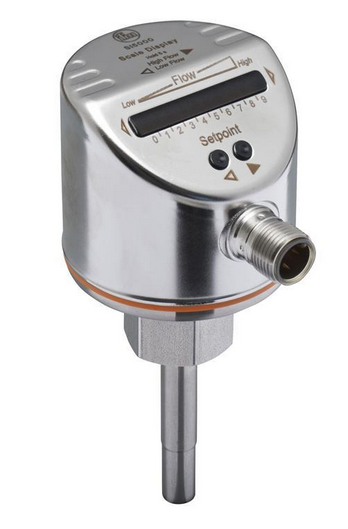

Flow monitor ifm electronic SI5000
The SI5000 flow monitor from ifm with a programmable output as normally open or normally closed measures liquid and gaseous media in a setting range of 3-300/200-3,000 cm/s at a pressure rating up to 30 bar. Thanks to the variable process connection (internal M18 x 1.5 thread for adapter) the SI5000 flow monitor can easily be integrated in the application. By means of the common M12 connector the SI5000 flow sensor can be reliably connected to the evaluation unit.
- Specifications
- Features
- Downloads
| Ambiant temperature | -25 °C to 80 °C |
| Current consumption [mA] | <60 |
| Electrical design | PNP |
| Operating voltage [V] | 19-36 DC V |
| Output function | normally open / closed; (configurable) |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
