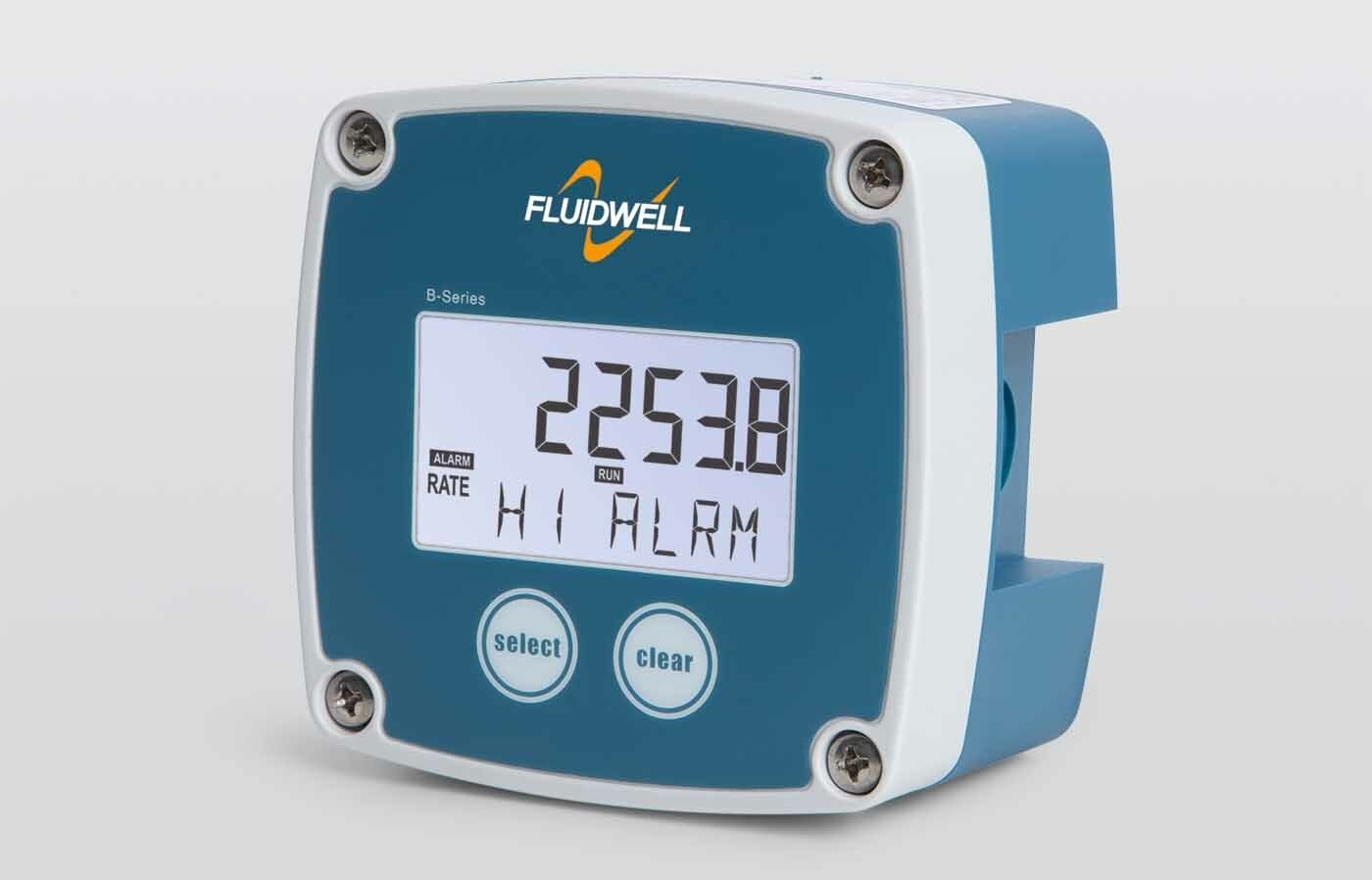

FLUIDWELL B-ALERT | Basic - Flow rate Monitor / Totalizer | with alarm / pulse output
With a feature that allows for continuous flow rate monitoring, the B-Alert is a flow rate indicator and totalizer. Its alarm values are for one high flow rate and one low flow rate. Flow rate, total, accumulated total, and alarm messages are all displayed on the display. From a wide assortment, on-screen engineering units are simple to configure.
- Specifications
- Features
- Downloads
| Input | Signal Inputs Flowmeter Inputs Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil). |
| Power Supply | A single 3,6V lithium AA battery. 10 " 30V DC. Sensor Supply : 8.2V DC. |
- small-scale layout.
- shows the alert messages, total, accumulated total, and the flow rate in real time.
- It is possible to enter the low and high flow rate alarm values.
- Sturdy IP65 (Type 4X) enclosure for a field, wall, or meter.
- Cable entry with one 20 mm (0.79") and two 16 mm (0.63") knock-out holes.
- "Know one, know them all" hierarchy of configurations.
- Simple programming and reading with a readable alphanumeric display.
- Clearly visible 7mm (0.3") alphanumeric and 12mm (0.5") numeric digits.
- LED backlight that is bright.
- Run totals and settings are automatically backed up.
- A 10–30V DC power source and a lithium AA battery.
- Sensor power: 8.2 volts DC.
