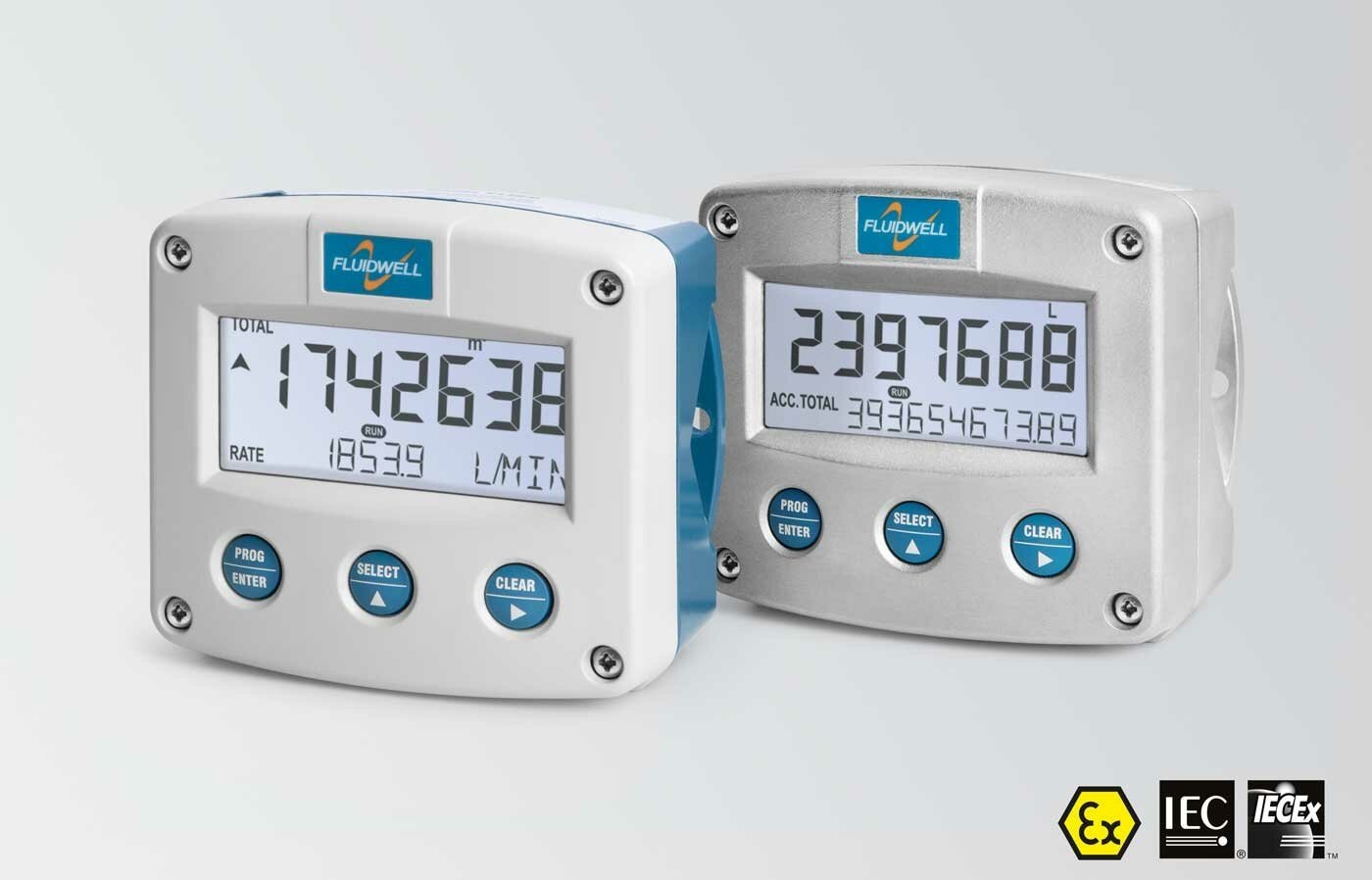

FLUIDWELL F110 Intrinsically safe - Flow rate Indicator / Totalizer | with Modbus communication | Analog and pulse outputs | Input (0)4 – 20mA.
With pulse and analog output signals, the F110 flow transmitter is the most often used model in our collection of flow rate indicators and totalizers. Our base unit configuration can handle even the most demanding applications. simultaneously shows the total, the flow rate, and any additional accumulated total. From a wide assortment, on-screen engineering units are simple to configure.
- Specifications
- Features
- Downloads
| Input | Flowmeter Inputs Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. |
| Power Supply | Long life Lithium battery. 4 " 20mA Loop-powered. 8 " 24V AC/DC. 115 " 230V AC. Basic: 8 - 30V DC. Sensor Supply : 3.2, 8.2, 12, 24V DC. |
- Pulse and analog outputs.
- simultaneously shows the total, the flow rate, and any additional accumulated total.
- Large digit selection available for total or flow rate.
- Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
- Total: seven resettable digits measuring 17 mm (0.67").
- Total accumulated: eleven 8mm (0.31") non-resetable digits.
- distinct engineering units on the display for the total and flow rate.
- To lock the "clear total" button or reset the total, use a remote control.
- LED backlighting.
- intrinsic safety as defined by IECEx and ATEX.
- Enclosures made of GRP, aluminum, or premium stainless steel.
- EEPROM memory is used for automatic setting and running total backups.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
