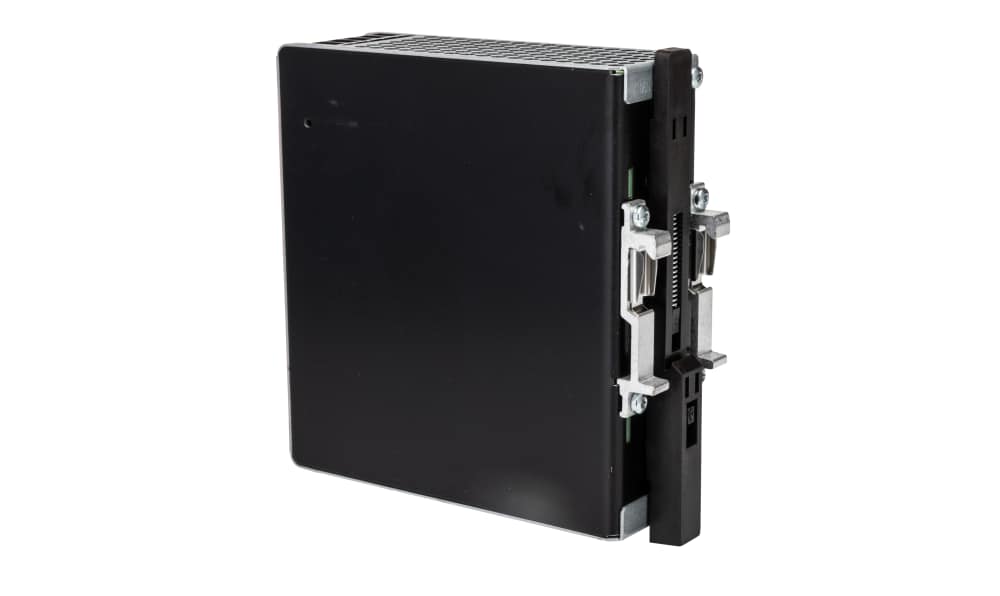

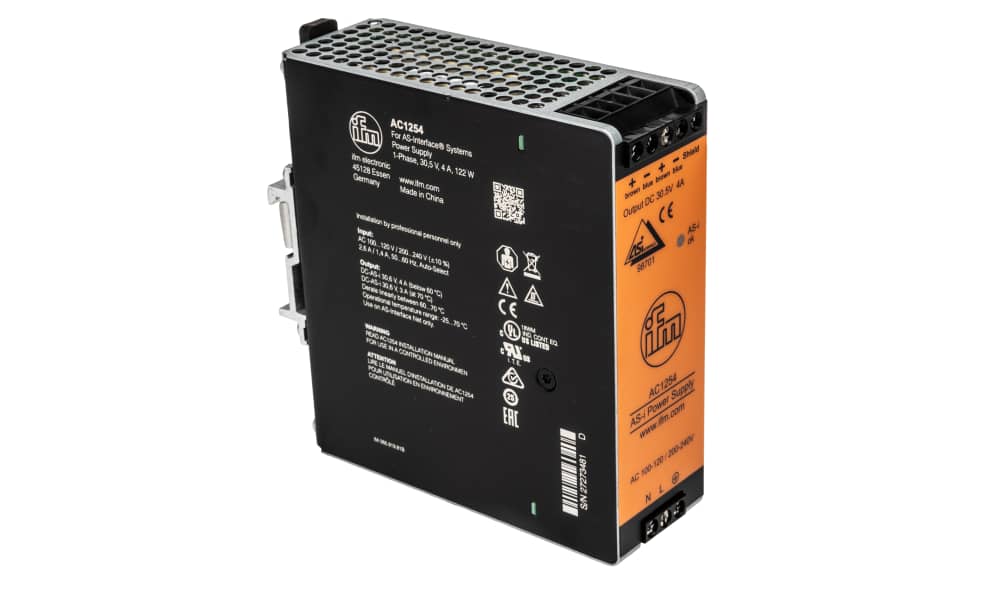

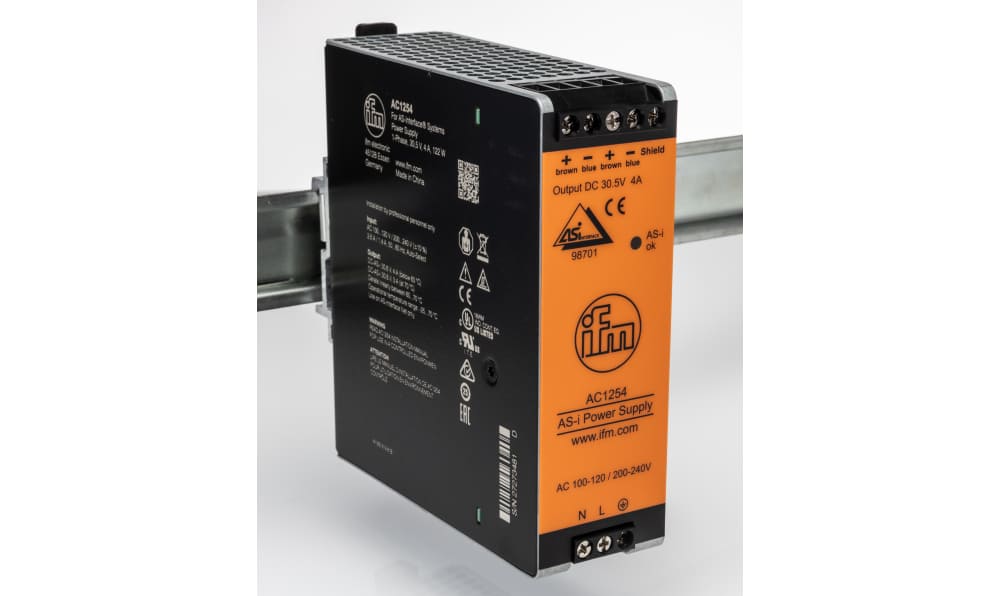

ifm AC1254, DIN Rail Power Supply, 115 → 230V ac, 30.55V dc, 4A Output

Name: ifm AC1254, DIN Rail Power Supply, 115 → 230V ac, 30.55V dc, 4A Output
Brand: ifm
SKU: AC1254
Availability: OutOfStock

Part Number : AC1254

Availability: Sold out

Detailed Description
Specifications

AC1216 - power supply for AS-i, 85 W

Power supply for AS-i networks
Output power 85 W
Short-circuit and overload protection
Integrated data decoupling
Jumper for switching off the AS-i communication
Status and error displays
DIN rail mounting
Dimensions (W x H x D): 49 x 131 x 107 mm

Approvals

CE, UL

Actuator Sensor Interface (AS-I)

Actuator Sensor Interface, AS-I

AS-I is a method of providing communication from simple discrete components such as an inductive sensor or switching valve via a simple two-wire network to a controlling device such as a PLC or PC.
A unique feature of the AS-I system is the flat, two-core cable (stock no 242-6189) designed to enable fast and easy connection, ensuring correct polarity every time. The cable can be used in a network up to 100m (300m if repeaters are used).
By providing power and data down the same cable, the amount of time normally used to connect sensors and actuators is dramatically reduced, thereby providing savings in cable requirements and man-hours.
The choice of AS-I connection modules enables the user to connect standard sensors/actuators to the BUS with all the address benefits of using dedicated sensors/actuators. It also serves to increase the number of I/O nodes that are available to the user by the use of addressable splitter boxes. The connection modules are available in a variety of packages and can accommodate up to 4 inputs and 4 outputs. This enables up to 124 inputs and 124 outputs to be connected to a single AS-I network.
Another feature of AS-I system is the method by which the sensors or modules communicate with the host. The design of the communications protocol ensures high data accuracy and error detection capabilities, making the ASI system ideal for automation in noisy and industrial environments.

Benefits of AS-I

Replaces hard wiring
High data speed
Low cost installation
Intelligent diagnostics
Easy to learn and install
Highly flexible
Can connect to other fieldbus systems
User-friendly
Off-site pre-assembly and test
Easy maintenance
Faster on-site commissioning
Host or stand alone use
Able to use standard sensors and actuators (using modules)

Brand	ifm
Input Voltage	115 → 230V ac
Output Voltage	30.55V dc
Output Current	4A
Depth	124.5mm
Width	40mm
Height	130.5mm
Mounting Type	DIN Rail Mount

ifm AC1254, DIN Rail Power Supply, 115 → 230V ac, 30.55V dc, 4A Output

ifm AC1254, DIN Rail Power Supply, 115 → 230V ac, 30.55V dc, 4A Output

AC1216 - power supply for AS-i, 85 W

Approvals

Omron S8VS-09024AP, S8VS Switched Mode DIN Rail Power Supply, 240V ac ac Input, 24V dc dc Output, 3.75A Output

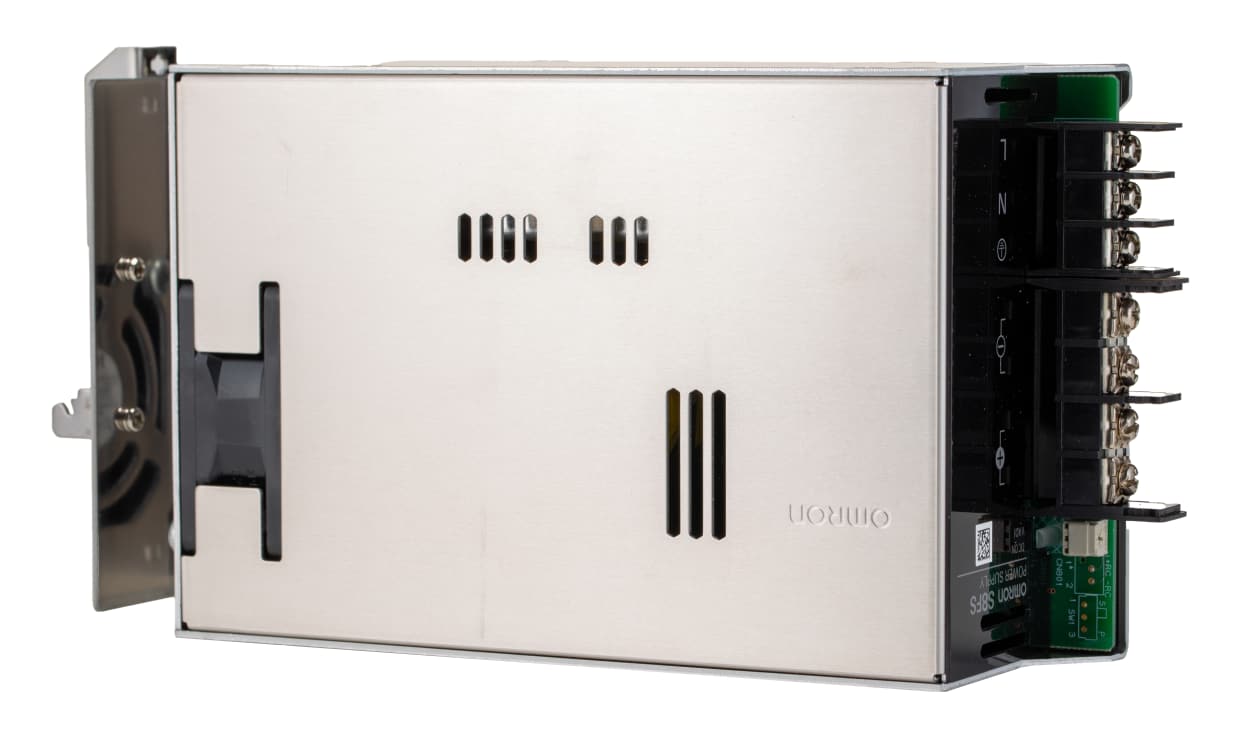

Omron S8FS-G60012CD, S8FS-G Enclosed Power Supply, 100 → 240V ac ac, dc Input, 12V dc dc Output, 50A Output, 600W

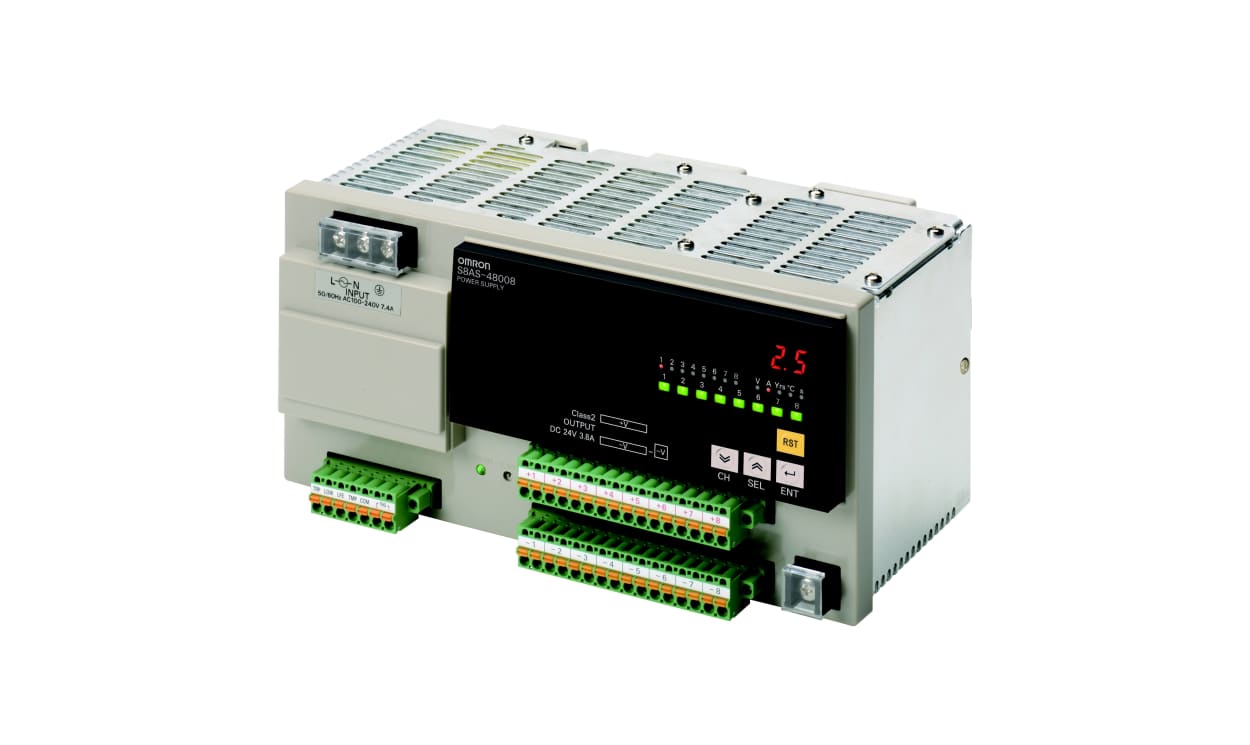

Omron S8AS-48008, S8AS Switched Mode DIN Rail Power Supply, 100V ac ac Input, 24V dc dc Output, 20A Output, 480W

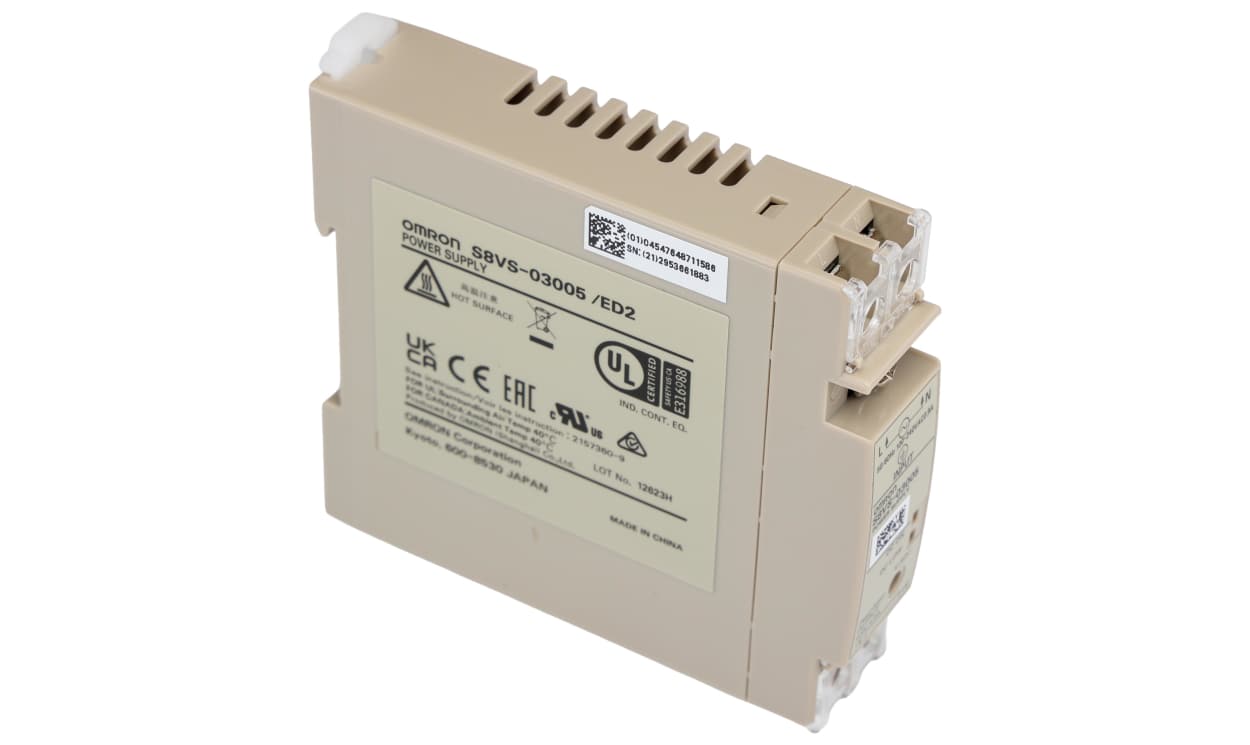

Omron S8VS-03005, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 4A Output, 20W

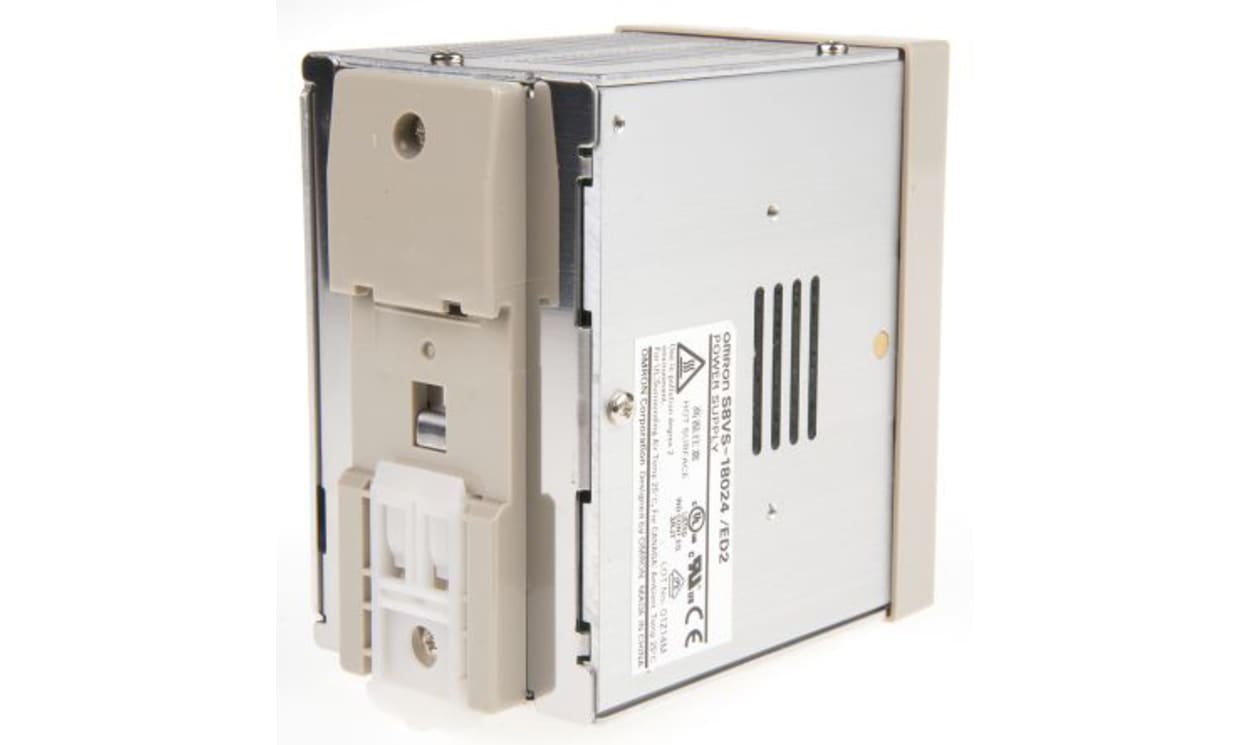

Omron S8VS-18024A, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 7.5A Output, 180W

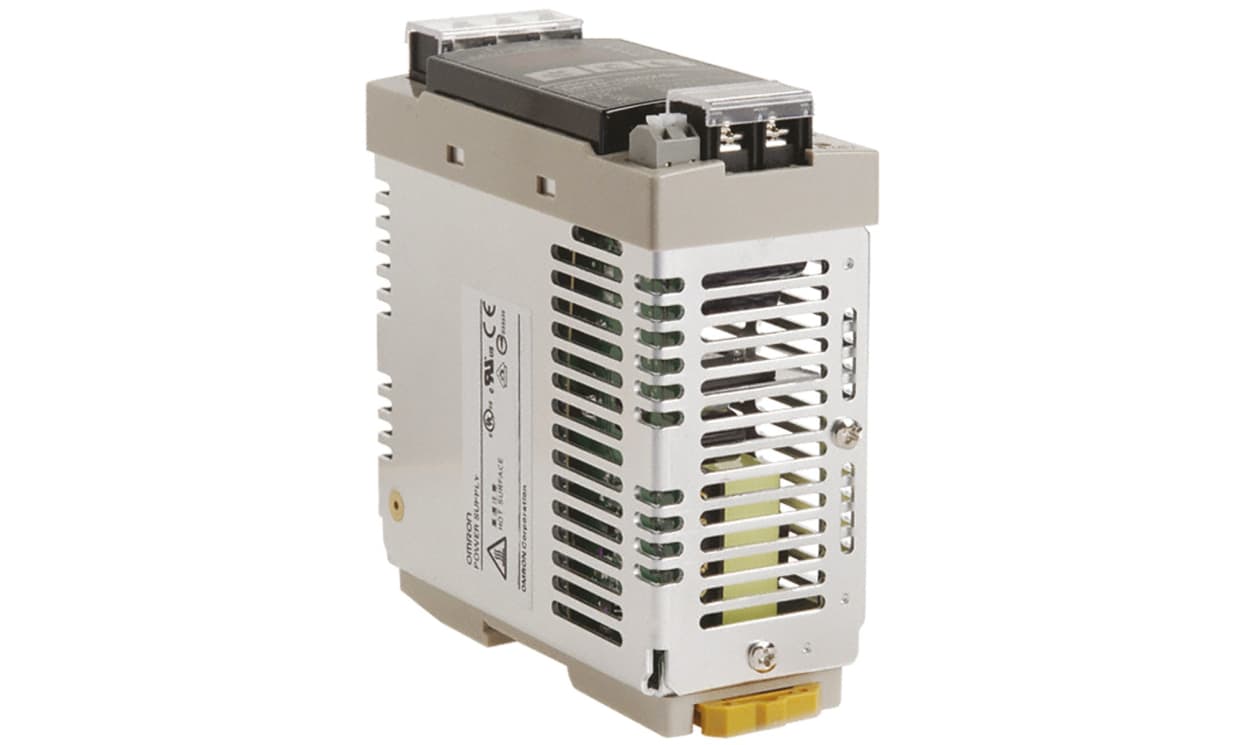

Omron S8VS-09024A, S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output, 90W

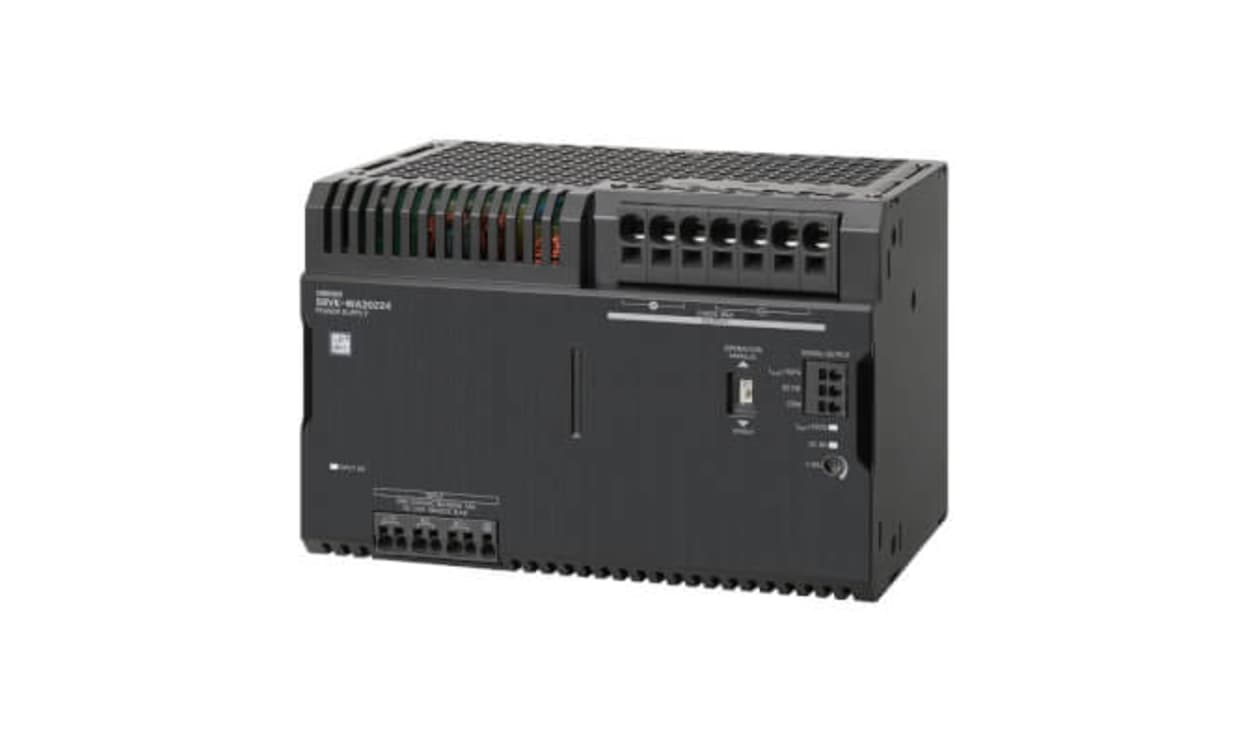

Omron S8VK-WA20224-SPI, S8VK Switch Mode Power Supply, 200 → 240V ac Input, 24V dc Output, 85A Output, 2kW
