ifm AC5228, 2 x 3/2 Pneumatic Solenoid Valve - Pilot/Spring AS-Interface Airbox Series 31.6V dc

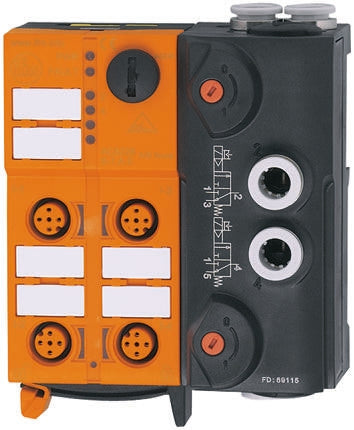

Name: ifm AC5228, 2 x 3/2 Pneumatic Solenoid Valve - Pilot/Spring AS-Interface Airbox Series 31.6V dc
Brand: ifm
SKU: AC5228
Availability: OutOfStock

Part Number : AC5228

Availability: Sold out

Detailed Description
Specifications
Downloads

AC52 Series - spool valves, AS-i controlled

Overlap-free spool valves with AS-i control
High flow and fast switching times
Peak pressure resistance → 12 bar
Digital inputs and enhanced addressed mode
3 freely configurable directions for flat lead

Approvals

Brand	ifm
Function	2 x 3/2
Actuation Type	Pilot/Spring
Manufacturer Series	AS-Interface Airbox
Solenoid Voltage	31.6V dc
Solenoid Fitted	Yes
Body Material	Polyamide
Maximum Flow Rate	500L/min
Minimum Operating Pressure	2bar
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-10°C
Maximum Operating Pressure	8bar
