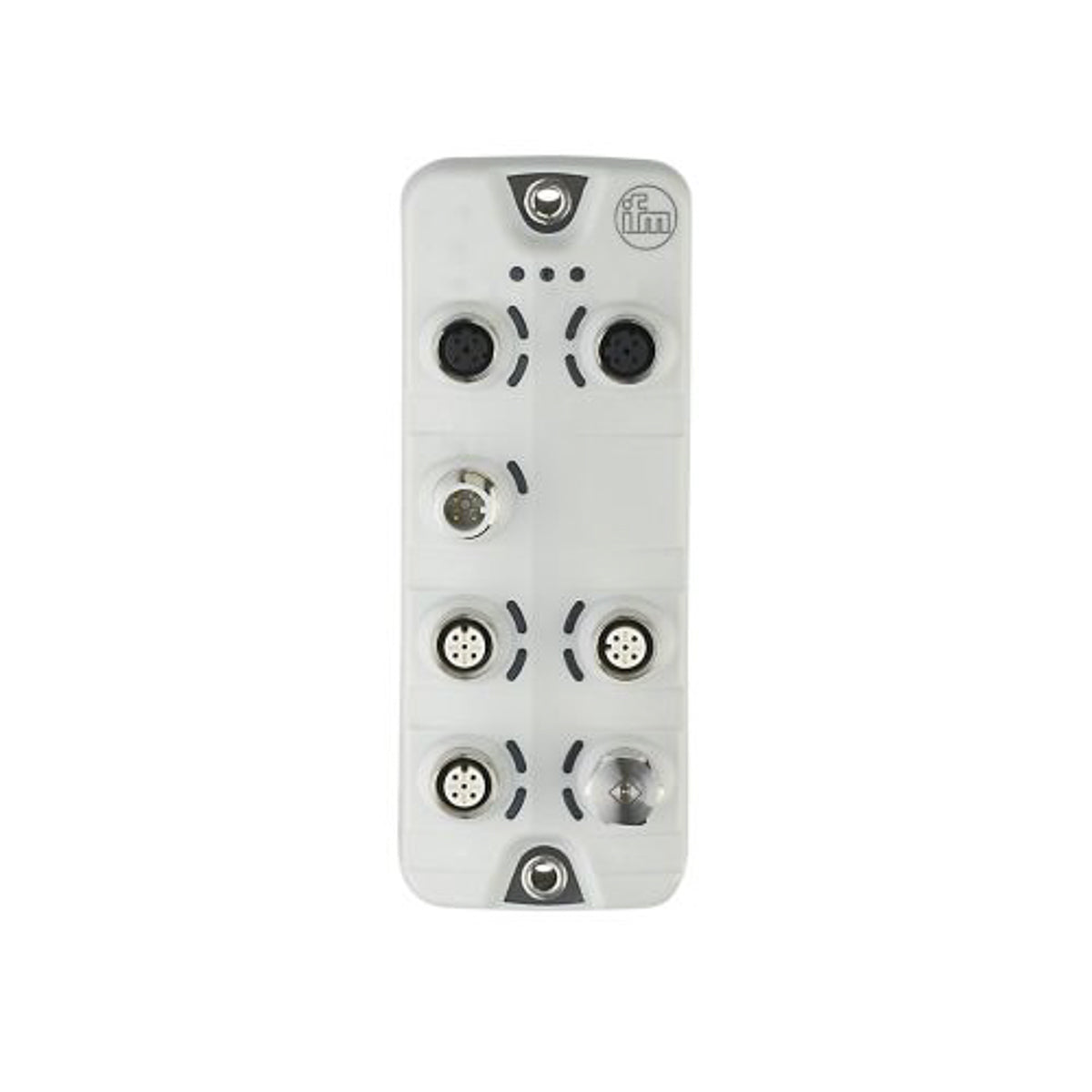

ifm AL1101, AL Series Sensor Box, M12, 4 port

Name: ifm AL1101, AL Series Sensor Box, M12, 4 port
Brand: ifm
SKU: AL1101
Availability: OutOfStock

Part Number : AL1101

Availability: Sold out

Detailed Description
Specifications
Downloads

For connection of up to eight IO-Link devices
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With integrated fieldbus interface
Wide operating temperature range and high protection rating

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to four IO-Link devices
With integrated PROFINET interface
Software LR AGENT EMBEDDED for direct communication with SAP
Robust housing for use in harsh industrial environments

Brand	ifm
Operating Voltage	20 → 30V dc
Number of Ports	4
Connector Size	M12
Protocol Type	Profinet
Series	AL
Communication Protocol	IO-LINK
Weight	273.5g
Housing Material	Polyamide
IP Rating	IP65, IP66, IP67, IP69K
IO Link Revision	1.1
Temperature Range	-25 → +60 °C
