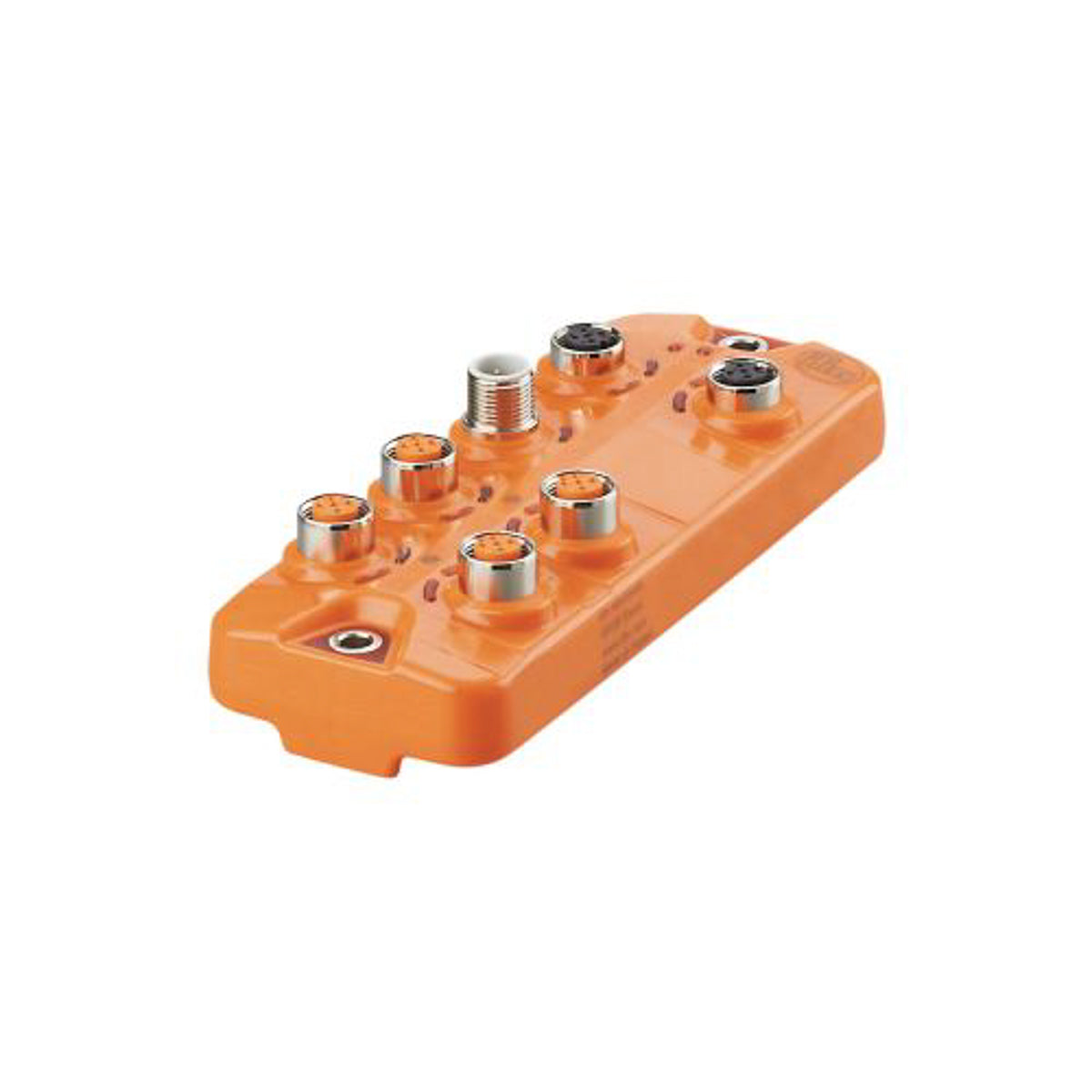

ifm AL1120, AL Series Sensor Box, M12, 4 port

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm AL1120, AL Series Sensor Box, M12, 4 port

Name: ifm AL1120, AL Series Sensor Box, M12, 4 port
Brand: ifm
SKU: AL1120
Availability: OutOfStock

Part Number : AL1120

The IO-Link Master StandardLine - AL1120 from ifm electronic with EtherNet/IP interface offers a more secure transmission of sensor information with a transmission rate of 10/100 Mbit/s by separating your automation and IT network. Up to 4 IO-Link sensors can be connected to the IO-Link Master StandardLine - AL1120. The connection is made via an M12 plug connection.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to eight IO-Link devices
Wide operating temperature range and high protection rating
With integrated fieldbus interface
Robust housing for use in harsh industrial environments

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to four IO-Link devices
With integrated EtherNet/IP interface
Software LR AGENT EMBEDDED for direct communication with SAP
Robust housing for use in harsh industrial environments

Brand	ifm
Operating Voltage	20 → 30V dc
Number of Ports	4
Connector Size	M12
Series	AL
Communication Protocol	IO-LINK
Weight	294.5g
Housing Material	Polyamide
IP Rating	IP65, IP66, IP67
IO Link Revision	1.1
Temperature Range	-25 → +60 °C

Reliable transmission of machine data, process parameters and diagnostic data to the controller
For connection of up to four IO-Link devices
With integrated EtherNet/IP interface
Robust housing for use in harsh industrial environments
