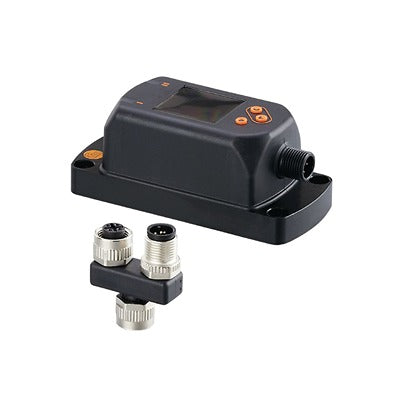

Name: ifm E30430, , E3 Series M12 Display for Use with Sensor, CE Certified Standard
Brand: ifm
SKU: E30430
Availability: OutOfStock

ifm E30430, , E3 Series M12 Display for Use with Sensor, CE Certified Standard

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm E30430, , E3 Series M12 Display for Use with Sensor, CE Certified Standard

Part Number : E30430

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic IO-Link Display is used for displaying all process values of a connected sensor. It operates at 18 to 30 V DC with a current consumption under 47 mA. The device features a minimum insulation resistance of 100 MΩ at 500 V DC and has a protection class III rating. Parameter settings include various display and indication options. It supports an IO-Link communication interface with COM2 transmission at 38.4 kBaud, IO-Link revision 1.1, and complies with the SDCI standard IEC 61131-9.

Gold-plated contacts
Reverse polarity protection
IP67 rated

Brand	ifm
Accessory Type	Display
For Use With	Sensor
Application	Display Of All Process Values
Series	E3
Connector Type	M12 x 1
Connector Size	M12
Standards Met	CE Certified
