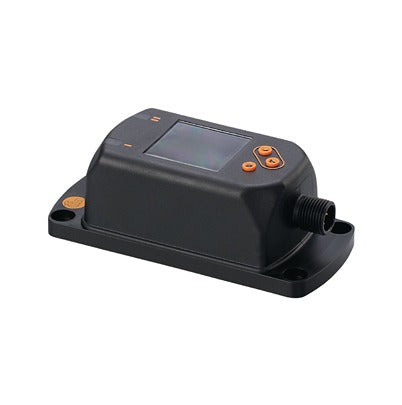

ifm E30443, , E3 Series M12 Display for Use with Sensor, CE Certified Standard

Part Number : E30443

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic IO-Link Display is used to display all process values of sensors connected to the same master. It operates at 18 to 30 V DC with a current consumption of less than 47 mA. The device has a minimum insulation resistance of 100 MΩ at 500 V DC and a protection class III rating. Parameter settings include display and indication options. It features an IO-Link communication interface with COM3 transmission at 230.4 kBaud, supports IO-Link revision 1.1, and complies with the SDCI standard IEC 61131-9.

Gold-plated contacts
Reverse polarity protection
IP67 rated

Brand	ifm
Accessory Type	Display
For Use With	Sensor
Application	Display Of All Process Values
Series	E3
Connector Type	M12 x 1
Connector Size	M12
Standards Met	CE Certified
