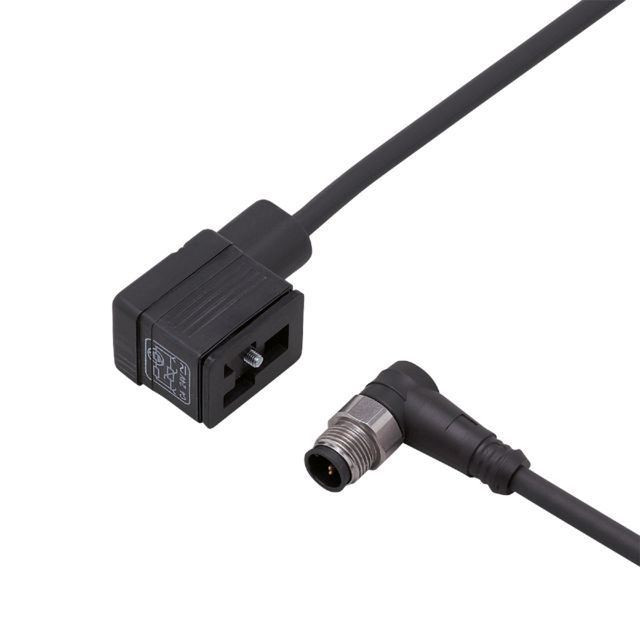

ifm E70143, Right Angle Male 1 way M12 to Right Angle Female 1 way Valve Connector Actuator/Sensor Cable, 300mm

Name: ifm E70143, Right Angle Male 1 way M12 to Right Angle Female 1 way Valve Connector Actuator/Sensor Cable, 300mm
Brand: ifm
SKU: E70143
Availability: OutOfStock

Part Number : E70143

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Jumper Cable with valve plug is designed to deliver reliable performance in a compact and durable form. Ideal for a variety of applications, this cable demonstrates exceptional flexibility with its halogen free PUR material, ensuring safety in sensitive environments. Its robust construction is highlighted by the stainless steel locking mechanism, providing added security and resilience.

Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Clearly visible LED for switching status indication
Robust rectangular connector

Brand	ifm
Series	E701
Number of Cores	3
Cross Sectional Area	0.5 mm²
Sheath Material	Polyurethane PUR
Length	300mm
Sheath Colour	Black
Connector 1 Orientation	Right Angle
Connector 1 Number of Contacts	1
Connector 1	M12
Connector 1 Gender	Male
Connector 2	Valve Connector
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2 Number of Contacts	1
