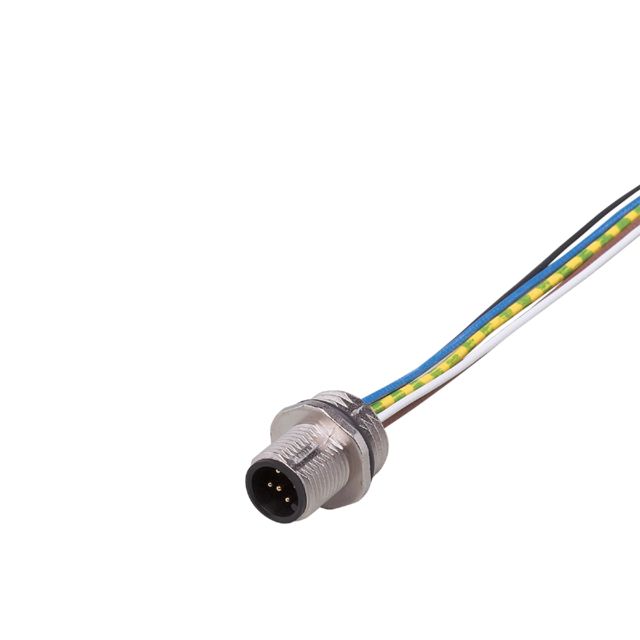

ifm E70190, Straight Male 1 way M12 to Unterminated Sensor Actuator Cable, 500mm

Name: ifm E70190, Straight Male 1 way M12 to Unterminated Sensor Actuator Cable, 500mm
Brand: ifm
SKU: E70190
Availability: OutOfStock

Part Number : E70190

Availability: Sold out

Detailed Description
Specifications

The Ifm electronic Adapter plug is engineered to operate with an electrical voltage of less than 125 volts AC/DC and is designed to withstand ambient temperatures ranging from 25°C to 85°C. It offers robust protection with an IP68 rating, making it highly resistant to dust and submersion in water. Its construction includes a diecast zinc body, providing durability and resistance to corrosion. The connector comes with a 0.5 meter PVC cable that has 4 conductors of 0.25 mm² each and 1 conductor of 0.5 mm² ensuring reliable electrical connections in various applications.

User-friendly equipment of distributors and housings with connections for connectors
Easy and quick installation into the container wall
Robust metal version
High protection rating for the requirements of harsh industrial environments
Wide operating tempe

Brand	ifm
Series	E Series
Cross Sectional Area	0.25 mm²
Number of Cores	4
Length	500mm
Sheath Material	Polyvinyl Chloride PVC
Connector 1	M12
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 2	Unterminated
