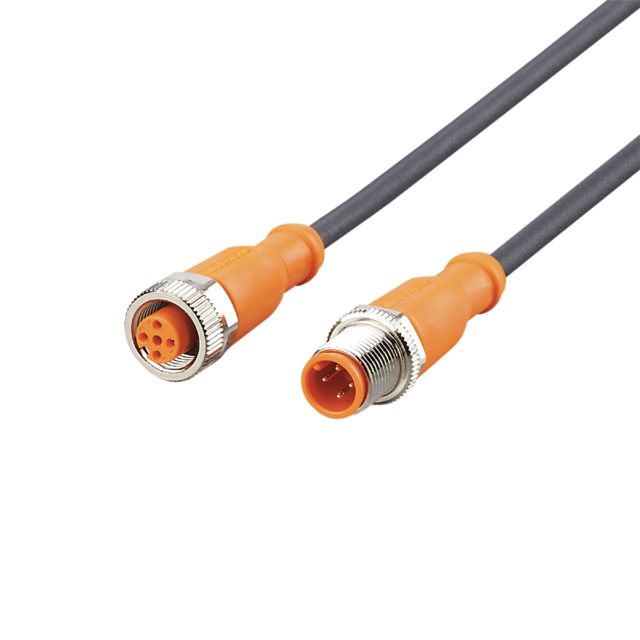

ifm EVC100, Straight Male 1 way M12 to Straight Female 1 way M12 Sensor Actuator Cable, 3m

Name: ifm EVC100, Straight Male 1 way M12 to Straight Female 1 way M12 Sensor Actuator Cable, 3m
Brand: ifm
SKU: EVC100
Availability: OutOfStock

Part Number : EVC100

Availability: Sold out

Detailed Description
Specifications

The ifm electronic robust connection cable is designed to meet the rigorous demands of industrial applications. Featuring a reliable design and exceptional performance, it seamlessly connects various devices while ensuring durability and efficiency. With its gold-plated contacts and halogen-free construction, the cable is engineered for longevity and safety, able to withstand harsh environments and significant mechanical stress. Ideal for use in drag chains, it offers flexibility and high resistance to bending cycles. Not only is it well-suited for indoor applications, but its IP65, IP67, IP68, and IP69K ratings ensure protection against dust and water, making it equally adept for outdoor use. Experience peace of mind with the knowledge that this connection cable can handle ambient temperatures from -25 to 90 degrees Celsius, providing a reliable solution for any connectivity challenge.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVC
Number of Cores	4
Cross Sectional Area	0.34 mm²
Sheath Colour	Black
Sheath Material	Polyurethane PUR
Length	3m
Connector 1 Number of Contacts	1
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1	M12
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	1
