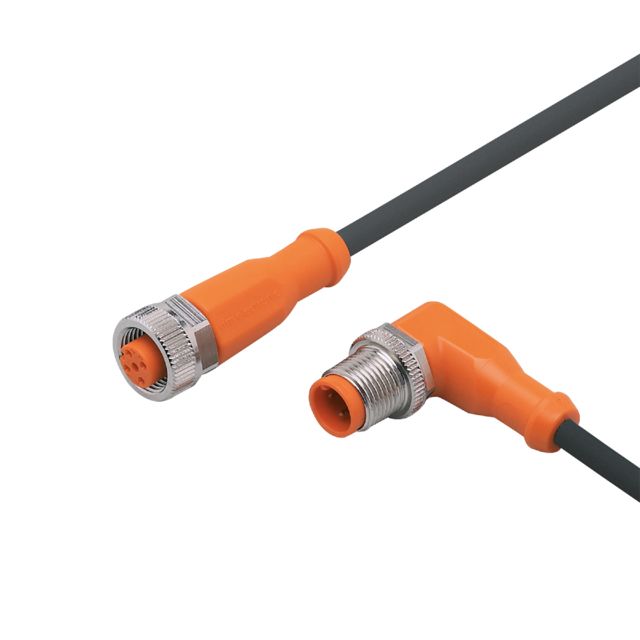

ifm EVC119, Right Angle Male 1 way M12 to Straight Female 1 way M12 Actuator/Sensor Cable, 700mm

Name: ifm EVC119, Right Angle Male 1 way M12 to Straight Female 1 way M12 Actuator/Sensor Cable, 700mm
Brand: ifm
SKU: EVC119
Availability: InStock

Part Number : EVC119

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Connection Cable is engineered for high performance applications, combining robust construction with superior electrical connectivity. The innovative use of materials, such as TPU housing and brass components, coupled with gold plated contacts, ensures reliable and efficient performance. This connection cable is the perfect solution for applications that require durability and flexibility, ensuring seamless operation in dynamic conditions.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Number of Cores	4
Cross Sectional Area	0.34 mm²
Sheath Colour	Black
Sheath Material	Polyurethane PUR
Length	700mm
Connector 1 Number of Contacts	1
Connector 1 Gender	Male
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 2 Number of Contacts	1
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Orientation	Straight

ifm EVC119, Right Angle Male 1 way M12 to Straight Female 1 way M12 Actuator/Sensor Cable, 700mm
