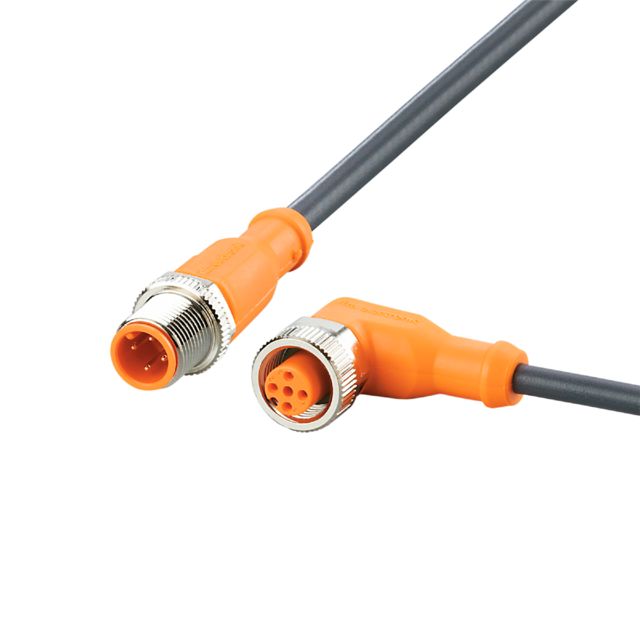

ifm EVC171, Straight Male 1 way M12 to Right Angle Female 1 way M12 Actuator/Sensor Cable, 1.3m

Name: ifm EVC171, Straight Male 1 way M12 to Right Angle Female 1 way M12 Actuator/Sensor Cable, 1.3m
Brand: ifm
SKU: EVC171
Availability: InStock

Part Number : EVC171

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic connection cable is designed for reliable data transmission in challenging environments. Engineered with precision, it is free from silicone and halogen, ensuring compatibility with various applications. The cable features robust, gold plated contacts that promise superior conductivity, coupled with drag chain suitability for enhanced flexibility and longevity. Able to operate in ambient temperatures ranging from -25°C to 90°C, this connection cable is equipped for both stationary and dynamic applications.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Number of Cores	4
Cross Sectional Area	0.34 mm²
Sheath Material	Polyurethane PUR
Length	1.3m
Sheath Colour	Black
Connector 1	M12
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 2	M12
Connector 2 Gender	Female
Connector 2 Number of Contacts	1
Connector 2 Orientation	Right Angle
