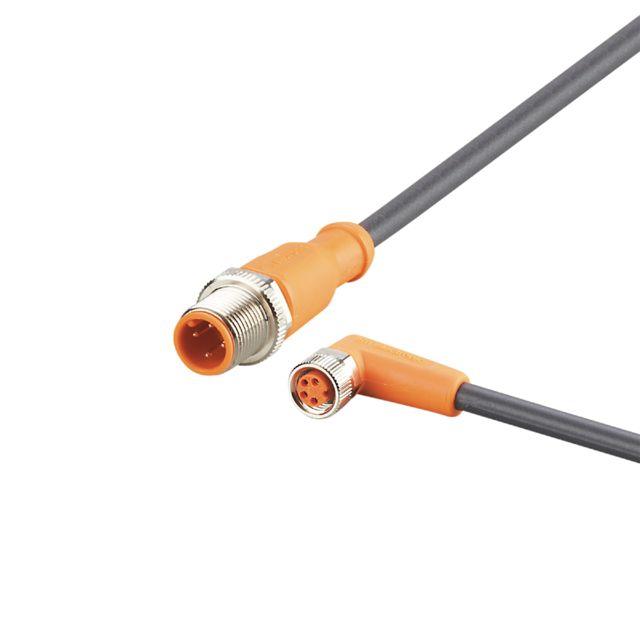

ifm EVC238, Straight Male 1 way M12 to Right Angle Female 1 way M8 Actuator/Sensor Cable, 2m

Name: ifm EVC238, Straight Male 1 way M12 to Right Angle Female 1 way M8 Actuator/Sensor Cable, 2m
Brand: ifm
SKU: EVC238
Availability: OutOfStock

Part Number : EVC238

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connection Cable is designed to meet the demanding needs of modern applications with unmatched reliability and performance. It seamlessly integrates into various environments, providing solutions that are both robust and efficient. The combination of TPU housing and FKM seals offers exceptional resilience against environmental factors, making it a great choice for dynamic applications where flexibility is key. In addition to its durable design, the cable supports significant bending cycles and torsional strain, making it an ideal companion for automated systems and machinery.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Material	Polyurethane PUR
Length	2m
Sheath Colour	Black
Connector 1 Number of Contacts	1
Connector 1 Orientation	Straight
Connector 1 Gender	Male
Connector 1	M12
Connector 2	M8
Connector 2 Number of Contacts	1
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
