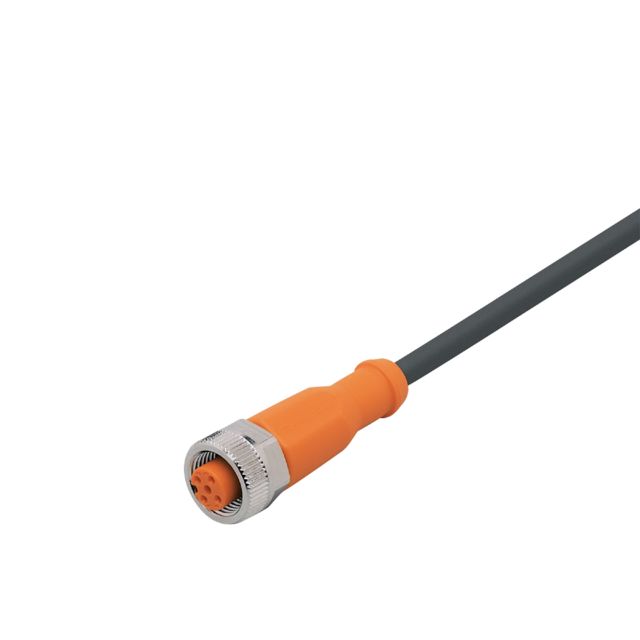

ifm EVC490, Straight Female 5 way M12 to Straight Female 5 way M12 Communication Cable, 2m

Name: ifm EVC490, Straight Female 5 way M12 to Straight Female 5 way M12 Communication Cable, 2m
Brand: ifm
SKU: EVC490
Availability: InStock

Part Number : EVC490

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Connecting Cable features a moulded body constructed from durable TPU, with a weight of 85 grams and compact dimensions of 15.5 x 15.5 x 45 mm. The nut is made from brass and nickel plated for enhanced corrosion resistance, while the sealing material is Viton, ensuring robust protection. Additionally, the cable is suitable for use in drag chains, making it versatile for various applications.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Material	Polyurethane PUR
Length	2m
Sheath Colour	Black
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	5
Connector 1 Gender	Female
Connector 1	M12
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	5
Connector 2	M12
Connector 2 Gender	Female
