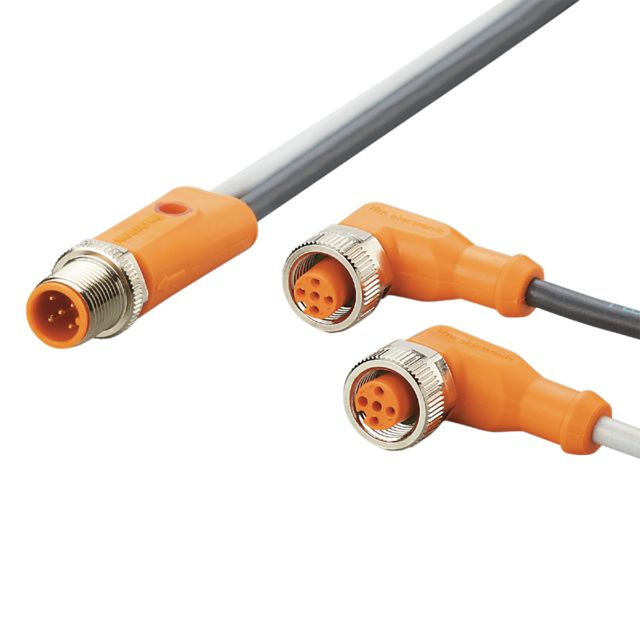

ifm EVC503, Straight Male 5 way M12 to Right Angle Female 5 way M12 Communication Cable, 250mm

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVC503, Straight Male 5 way M12 to Right Angle Female 5 way M12 Communication Cable, 250mm

Name: ifm EVC503, Straight Male 5 way M12 to Right Angle Female 5 way M12 Communication Cable, 250mm
Brand: ifm
SKU: EVC503
Availability: OutOfStock

Part Number : EVC503

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Y connection cable is expertly designed for reliable connectivity in versatile applications. With its robust construction, this cable offers enhanced durability and performance in various environments. Featuring gold-plated contacts and a moulded body made from TPU, it ensures a secure and long-lasting connection. The cable is halogen-free, making it an environmentally friendly choice while maintaining exceptional flexibility and resistance to wear. Whether used in drag chains or static installations, this cable's superior protection against moisture and dust makes it ideal for demanding conditions. The ambient temperature range further enhances its applicability across diverse settings, ensuring consistent performance over time.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Number of Cores	5
Cross Sectional Area	0.34 mm²
Sheath Material	Polyurethane PUR
Sheath Colour	Black, Grey
Length	250mm
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Number of Contacts	5
Connector 1 Gender	Male
Connector 2	M12
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2 Number of Contacts	5
