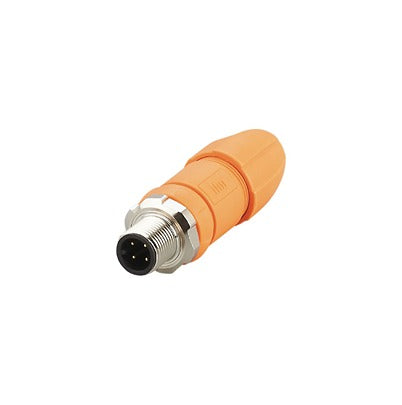

Name: ifm EVC812, , EVC Series M12 Plug for Use with Sensor, CE Certified Standard
Brand: ifm
SKU: EVC812
Availability: OutOfStock

ifm EVC812, , EVC Series M12 Plug for Use with Sensor, CE Certified Standard

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVC812, , EVC Series M12 Plug for Use with Sensor, CE Certified Standard

Part Number : EVC812

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Wirable Plug operates at voltages below 250 V AC and 300 V DC, with a protection class II rating. It supports a maximum current load of 4 A at 40°C. The plug is suitable for ambient temperatures from -25°C to 90°C. Storage conditions include temperatures from -25°C to 55°C and humidity levels between 10% and 100%. It meets the storage climatic conditions according to class 1K22 / DIN 60721-3-1. The moulded body is made of PA 6.6, the nut is made of nickel-plated brass, and the sealing material is FKM.

Free from silicone
Gold-plated contacts
IP69K rated
