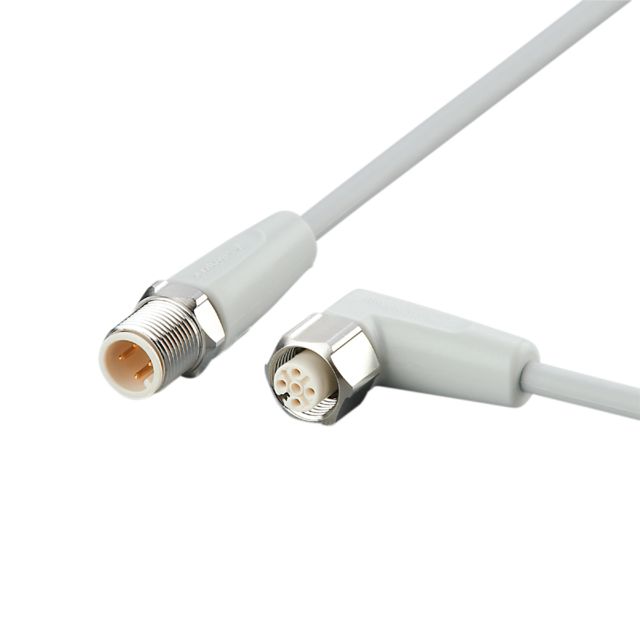

ifm EVF051, Straight Male 4 way M12 to Right Angle Female 5 way M12 Communication Cable, 10m

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVF051, Straight Male 4 way M12 to Right Angle Female 5 way M12 Communication Cable, 10m

Name: ifm EVF051, Straight Male 4 way M12 to Right Angle Female 5 way M12 Communication Cable, 10m
Brand: ifm
SKU: EVF051
Availability: OutOfStock

Part Number : EVF051

Availability: Sold out

Detailed Description
Specifications

The ifm electronic advanced connection cable is meticulously engineered for efficiency in demanding environments, particularly suited for hygienic and wet areas within the food industry. Delivering robustness and reliability, this product features a range of unique attributes including silicone-free construction and a halogen-free design, ensuring not only compatibility with stringent industry standards but also enhanced safety. The cable’s protective features, including IP65, IP67, IP68, and IP69K ratings, provide exceptional resistance against moisture and dust, significantly extending its durability. Moreover, with gold-plated contacts and stainless-steel locking mechanisms, the connection maintains excellent performance even under challenging conditions. This connection cable seamlessly integrates into various applications, ensuring smooth and reliable operation while prioritising the demands of modern industry.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mech

Brand	ifm
Series	EVF
Number of Cores	4
Cross Sectional Area	0.34 mm²
Sheath Colour	Grey
Sheath Material	Modified Polyphenylene Ether MPPE
Length	10m
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 1	M12
Connector 1 Orientation	Straight
Connector 2 Orientation	Right Angle
Connector 2 Number of Contacts	5
Connector 2 Gender	Female
Connector 2	M12
