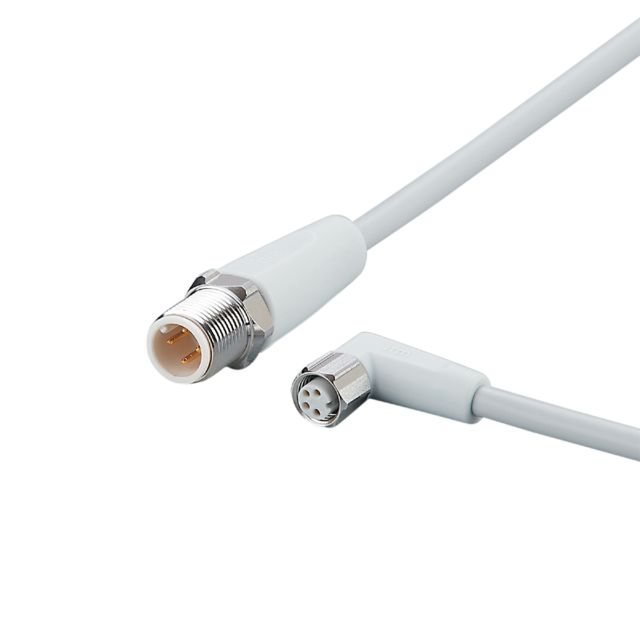

ifm EVF253, Straight Male 4 way M12 to Right Angle Female 4 way M8 Communication Cable, 300mm

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVF253, Straight Male 4 way M12 to Right Angle Female 4 way M8 Communication Cable, 300mm

Name: ifm EVF253, Straight Male 4 way M12 to Right Angle Female 4 way M8 Communication Cable, 300mm
Brand: ifm
SKU: EVF253
Availability: OutOfStock

Part Number : EVF253

Availability: Sold out

Detailed Description
Specifications

The ifm electronic cutting-edge connection cable is designed for reliability and performance in the most demanding environments. Engineered specifically for hygienic and wet areas in the food industry, it combines robust mechanics with excellent electrical properties. Its innovative design ensures it remains free from silicone and halogen, making it an ideal choice for users prioritising safe and clean operation. The product incorporates gold-plated contacts to guarantee optimal conductivity, while its impressive mechanical resilience enables it to withstand harsh conditions, including frequent bending and torsional strains. The connector and socket feature stainless-steel locking mechanisms that promote secure fittings, ensuring peace of mind in every application. With a versatile temperature tolerance and multiple protection ratings, this product adapts seamlessly to various operational needs, providing long-lasting service and exceptional performance.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVF
Cross Sectional Area	0.34 mm²
Number of Cores	4
Sheath Colour	Grey
Length	300mm
Sheath Material	Modified Polyphenylene Ether MPPE
Connector 1	M12
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 2 Orientation	Right Angle
Connector 2 Number of Contacts	4
Connector 2 Gender	Female
Connector 2	M8
