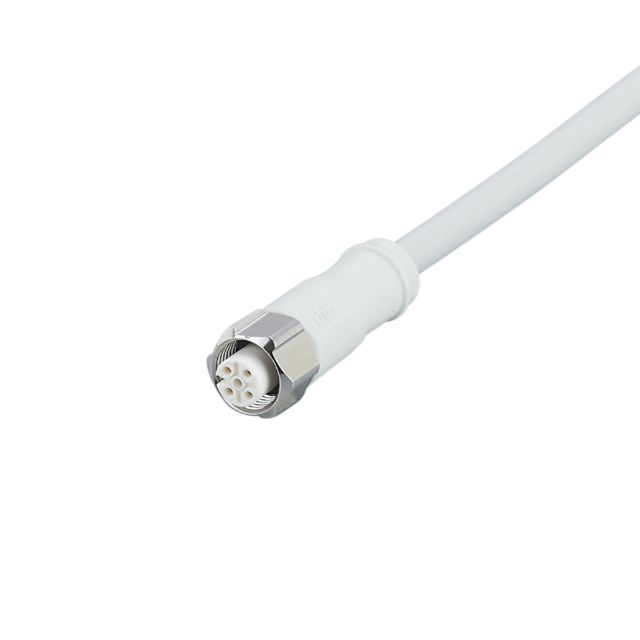

Name: ifm EVF482, Straight Female 5 way M12 to Straight Female 5 way M12 Communication Cable, 10m
Brand: ifm
SKU: EVF482
Availability: OutOfStock

ifm EVF482, Straight Female 5 way M12 to Straight Female 5 way M12 Communication Cable, 10m

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVF482, Straight Female 5 way M12 to Straight Female 5 way M12 Communication Cable, 10m

Part Number : EVF482

Availability: Sold out

Detailed Description
Specifications

The ifm electronic innovative connecting cable with socket is designed for demanding applications in hygienic and wet environments, particularly within the food industry. Built to withstand challenging conditions, it features a robust construction that ensures reliability and durability. The product is free from silicone and halogen, making it a safe choice for sensitive environments. With excellent protection ratings of IP65, IP67, IP68, and IP69K, it offers exceptional resistance against dust and water ingress. Additionally, the cable's flexibility and drag chain suitability make it ideal for dynamic applications where movement and strain are a factor. All these features come together to create a dependable solution for your connectivity needs, embodying both practicality and advanced engineering.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Large cable cross-section for reducing the voltage drop and transferring higher currents

Brand	ifm
Series	EVF
Cross Sectional Area	1 mm²
Number of Cores	4
Sheath Colour	Grey
Length	10m
Sheath Material	Modified Polyphenylene Ether MPPE
Connector 1 Gender	Female
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Number of Contacts	5
Connector 2 Orientation	Straight
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Number of Contacts	5
