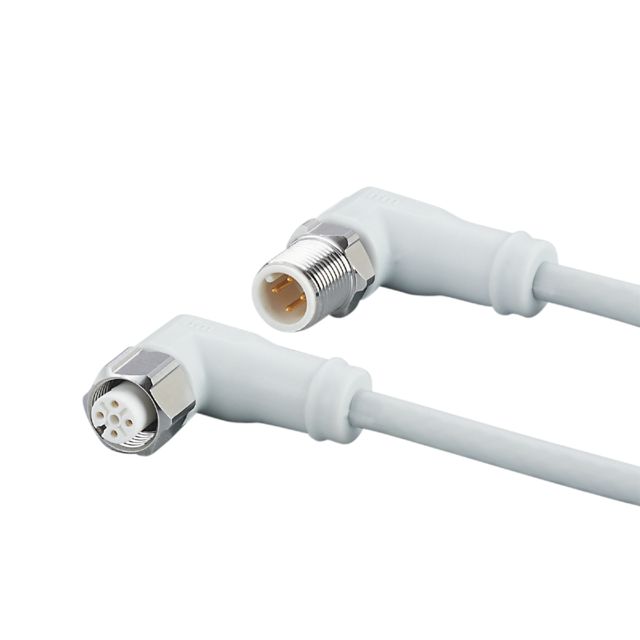

ifm EVF512, Right Angle Male 4 way M12 to Right Angle Female 5 way M12 Communication Cable, 500mm

Name: ifm EVF512, Right Angle Male 4 way M12 to Right Angle Female 5 way M12 Communication Cable, 500mm
Brand: ifm
SKU: EVF512
Availability: InStock

Part Number : EVF512

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic cutting-edge connection cable designed for versatility and reliability in demanding environments. Ideal for hygienic and wet areas within the food industry, this cable boasts a silicone-free, halogen-free composition, ensuring safety and compliance with stringent industry standards. Built for durability, it features gold-plated contacts to minimise wear and tear, providing consistent performance over time. The compact dimensions and lightweight construction offer ease of installation and flexibility, while its exceptional protection classes allow for operation in diverse conditions, from ambient temperatures as low as -25°C to as high as 100°C. With impressive drag chain suitability, It is engineered to withstand extensive bending cycles, making it an ideal choice for dynamic applications.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Cable sheath made of halogen-free and flame-retardant material
Vibration and shock resistant thanks to coupling ring with locking mechanism
Large cable cross-section for reducing the voltage drop and transferring higher currents

Brand	ifm
Series	EVF
Cross Sectional Area	1 mm²
Number of Cores	4
Sheath Material	Modified Polyphenylene Ether MPPE
Sheath Colour	Grey
Length	500mm
Connector 1 Orientation	Right Angle
Connector 1 Gender	Male
Connector 1	M12
Connector 1 Number of Contacts	4
Connector 2 Orientation	Right Angle
Connector 2 Number of Contacts	5
Connector 2 Gender	Female
Connector 2	M12
