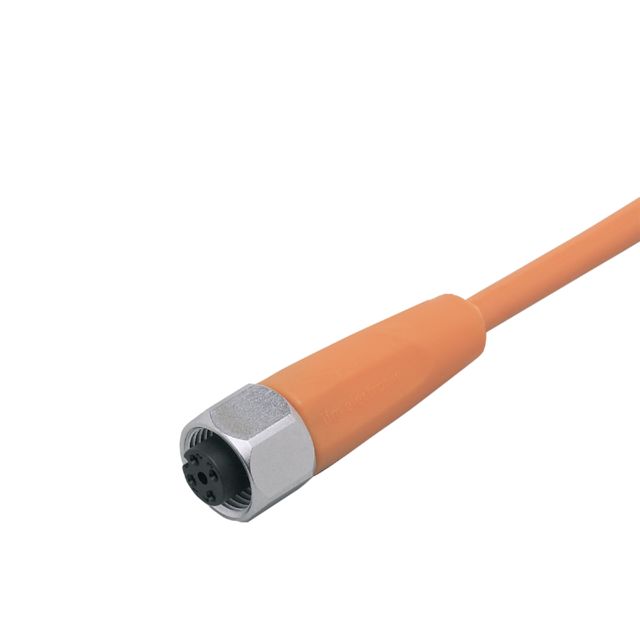

ifm EVT012, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 25m
The 5-pole M12 sensor cable EVT012 from ifm is temperature resistant up to 100 °C and therefore especially suited for difficult applications. The EVT012 sensor cable consists of a 25 m PVC cable, a straight M12 socket and gold-plated contacts. The M12 stainless steel coupling nut is secured against shock and vibration due to saw tooth contoured vibration protection. Thanks to the high protection rating IP67/IP68/IP69K and the ECOLAB certificate the silicone-free sensor cable EVT012 is ideally suited for hygienic and wet areas in the food industry.
- Detailed Description
- Specifications
- Features
- Downloads
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction
| Brand | ifm |
| Series | EVT |
| Number of Cores | 5 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Colour | Orange |
| Length | 25m |
| Sheath Material | Polyvinyl Chloride PVC |
| Connector 1 | M12 |
| Connector 1 Number of Contacts | 1 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
- For use in sanitary and wet areas in the food industry
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range and high protection rating
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
