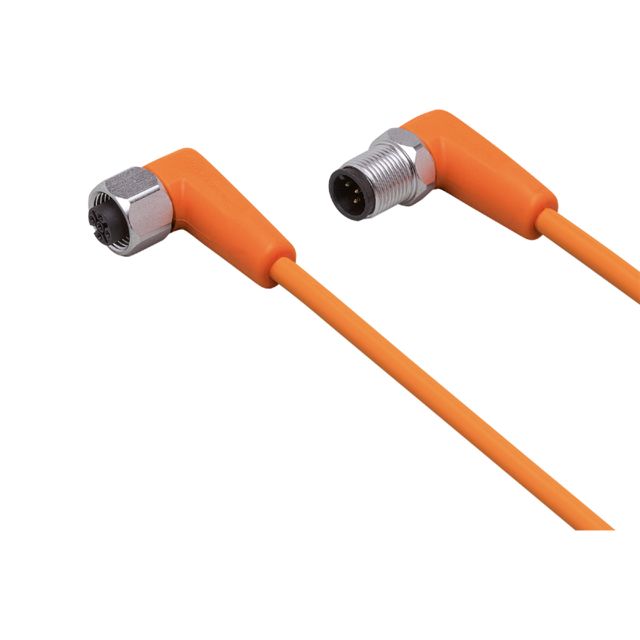

ifm EVT085, Right Angle Male 1 way M12 to Right Angle Female 1 way M12 Sensor Actuator Cable, 300mm

Name: ifm EVT085, Right Angle Male 1 way M12 to Right Angle Female 1 way M12 Sensor Actuator Cable, 300mm
Brand: ifm
SKU: EVT085
Availability: InStock

Part Number : EVT085

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Connecting Cable is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVT
Number of Cores	5
Cross Sectional Area	0.34 mm²
Sheath Colour	Orange
Length	300mm
Sheath Material	Polyvinyl Chloride PVC
Connector 1 Number of Contacts	1
Connector 1 Gender	Male
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 2	M12
Connector 2 Number of Contacts	1
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
