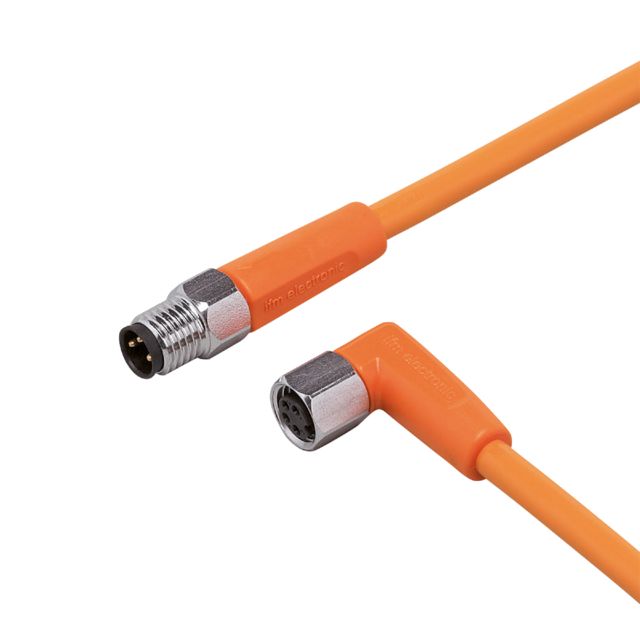

Name: ifm EVT284, Straight Male 1 way M8 to Right Angle Female 1 way M8 Sensor Actuator Cable, 600mm
Brand: ifm
SKU: EVT284
Availability: InStock

ifm EVT284, Straight Male 1 way M8 to Right Angle Female 1 way M8 Sensor Actuator Cable, 600mm

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVT284, Straight Male 1 way M8 to Right Angle Female 1 way M8 Sensor Actuator Cable, 600mm

Part Number : EVT284

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Connection Cable is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. The durable PVC housing is complemented by robust stainless steel components, providing exceptional protection and longevity in demanding environments. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVT
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Colour	Orange
Length	600mm
Sheath Material	Polyvinyl Chloride PVC
Connector 1 Gender	Male
Connector 1	M8
Connector 1 Number of Contacts	1
Connector 1 Orientation	Straight
Connector 2 Gender	Female
Connector 2	M8
Connector 2 Orientation	Right Angle
Connector 2 Number of Contacts	1
