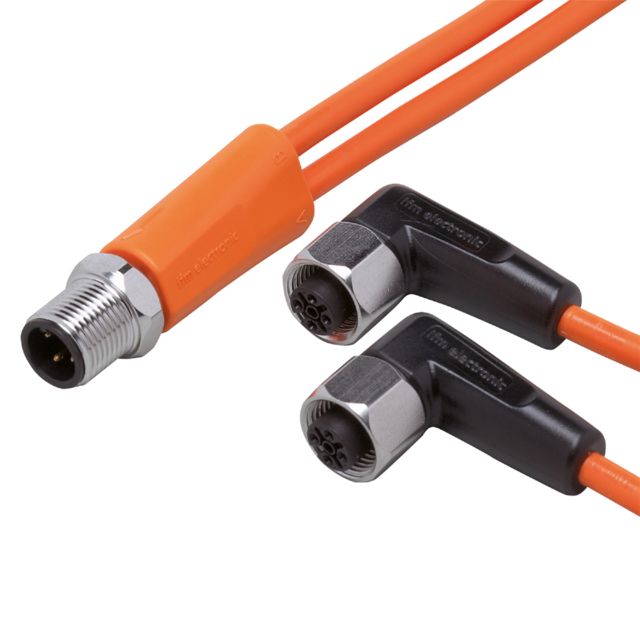

Name: ifm EVT336, Straight Male 1 way M12 to Right Angle Female 2 way M12 Sensor Actuator Cable, 2m
Brand: ifm
SKU: EVT336
Availability: OutOfStock

ifm EVT336, Straight Male 1 way M12 to Right Angle Female 2 way M12 Sensor Actuator Cable, 2m

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVT336, Straight Male 1 way M12 to Right Angle Female 2 way M12 Sensor Actuator Cable, 2m

Part Number : EVT336

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Y Connection Cable is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. The durable PVC housing is complemented by robust stainless steel components, providing exceptional protection and longevity in demanding environments. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
LEDs clearly visible even under bright lighting

Brand	ifm
Series	EVT
Number of Cores	3
Cross Sectional Area	0.34 mm²
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Orange
Length	2m
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 1	M12
Connector 2 Orientation	Right Angle
Connector 2 Number of Contacts	2
Connector 2	M12
Connector 2 Gender	Female
