ifm EVT569, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 15m

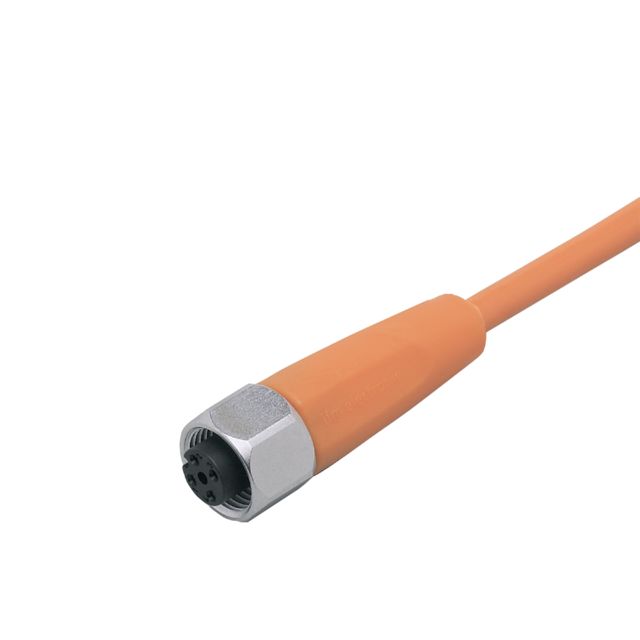

Name: ifm EVT569, Straight Female 1 way M12 to Unterminated Sensor Actuator Cable, 15m
Brand: ifm
SKU: EVT569
Availability: OutOfStock

Part Number : EVT569

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connecting Cable with Socket is meticulously designed for applications demanding high reliability in challenging environments. It excels with its silicone free construction and gold plated contacts, ensuring minimal contamination and optimal performance. The robust design also accommodates drag chain usage, making it ideal for dynamic installations. The durable PVC housing is complemented by robust stainless steel components, providing exceptional protection and longevity in demanding environments. Whether you require mobility or stability, this cable's versatile features complement various application needs.

For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Continuously high EMC interference protection against noise field interference

Brand	ifm
Series	EVT
Number of Cores	5
Cross Sectional Area	0.25 mm²
Length	15m
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Orange
Connector 1 Gender	Female
Connector 1 Orientation	Straight
Connector 1	M12
Connector 1 Number of Contacts	1
Connector 2	Unterminated
