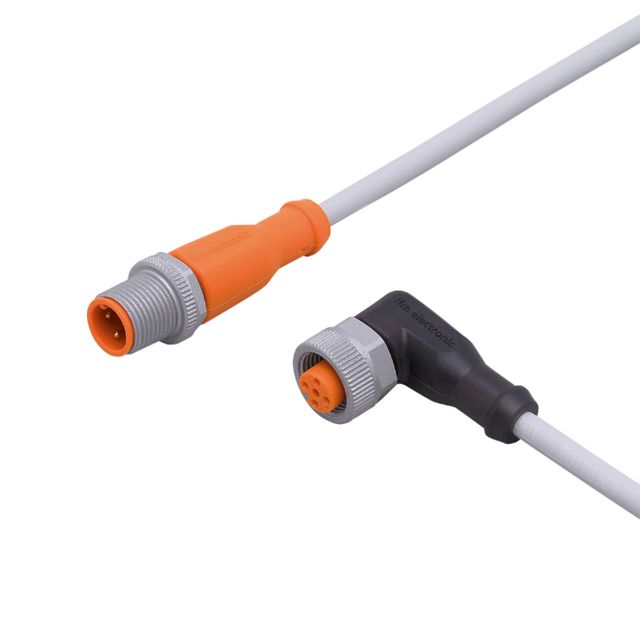

ifm EVW063, Straight Male 1 way M12 to Right Angle Female 1 way M12 Sensor Actuator Cable, 300mm

Name: ifm EVW063, Straight Male 1 way M12 to Right Angle Female 1 way M12 Sensor Actuator Cable, 300mm
Brand: ifm
SKU: EVW063
Availability: InStock

Part Number : EVW063

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic Connection Cable offers innovative solutions for welding applications, designed to enhance performance and reliability. Engineered with a focus on user safety and functionality, the product features silicone free and halogen free materials. Its robust construction, including gold plated contacts, ensures superior electrical conductance. The cable's flexibility and drag chain suitability are tailored for dynamic applications, providing outstanding durability over time. The durable TPU housing is complemented by robust brass components, providing exceptional protection and longevity. With a thoughtfully crafted design, this product represents a reliable choice for professionals seeking efficiency in their operations.

Weld-slag resistant PUR cable with drag chain suitability
Nut with special weld-slag resistant coating
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVW
Number of Cores	4
Cross Sectional Area	0.34 mm²
Sheath Material	Polyurethane PUR
Sheath Colour	Grey
Length	300mm
Connector 1	M12
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 2 Number of Contacts	1
Connector 2	M12
Connector 2 Gender	Female
Connector 2 Orientation	Right Angle

ifm EVW063, Straight Male 1 way M12 to Right Angle Female 1 way M12 Sensor Actuator Cable, 300mm
