ifm I22002, Inductive Smooth Barrel Proximity Sensor, 120mm Detection NC, 90 → 250 V ac

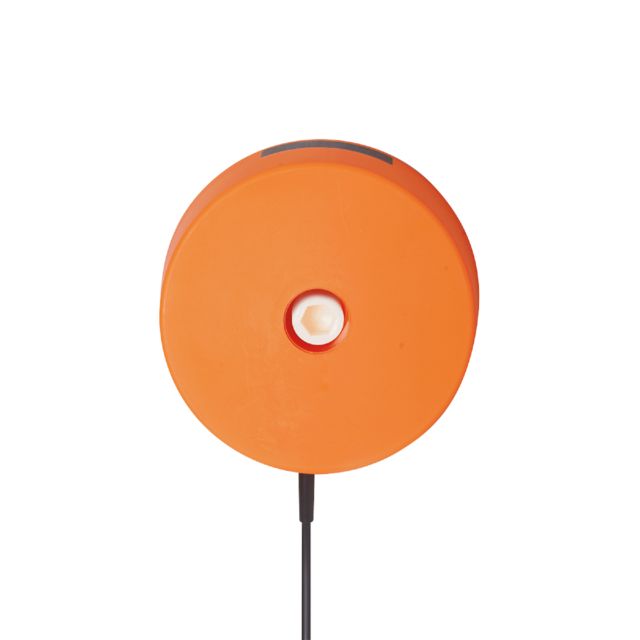

Name: ifm I22002, Inductive Smooth Barrel Proximity Sensor, 120mm Detection NC, 90 → 250 V ac
Brand: ifm
SKU: I22002
Availability: OutOfStock

Part Number : I22002

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive area sensor represents a sophisticated solution in sensing technology. Engineered for precision, it operates within a range of 30 to 120 mm, making it ideal for a variety of industrial applications. This sensor combines a robust cylindrical housing with advanced electronic components to ensure reliable performance in challenging environments. The durable design incorporates a protection rating of IP65, allowing it to withstand dust and moisture, thus extending its lifespan.

Long sensing range of 120 mm
Active base with 164 mm diameter
For applications in the steel and metal industries
Easy setting of the sensing range via potentiometer
With AC output for use in AC power mains

Brand	ifm
Sensor Technology	Inductive
Detection Range	120mm
Body Style	Smooth Barrel
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	90 → 250 V ac
Length	63mm
IP Rating	IP65
Mounting Type	Non-Flush
Diameter	164 mm
Switching Current	200 mA
Switching Frequency	3 Hz
Shielding	Unshielded
Series	I22
