ifm ID5075, Inductive Rectangular Proximity Sensor, 50 mm Detection, NPN NO, 10 → 36 V dc

Name: ifm ID5075, Inductive Rectangular Proximity Sensor, 50 mm Detection, NPN NO, 10 → 36 V dc
Brand: ifm
SKU: ID5075
Availability: OutOfStock

Part Number : ID5075

Availability: Sold out

Detailed Description
Specifications

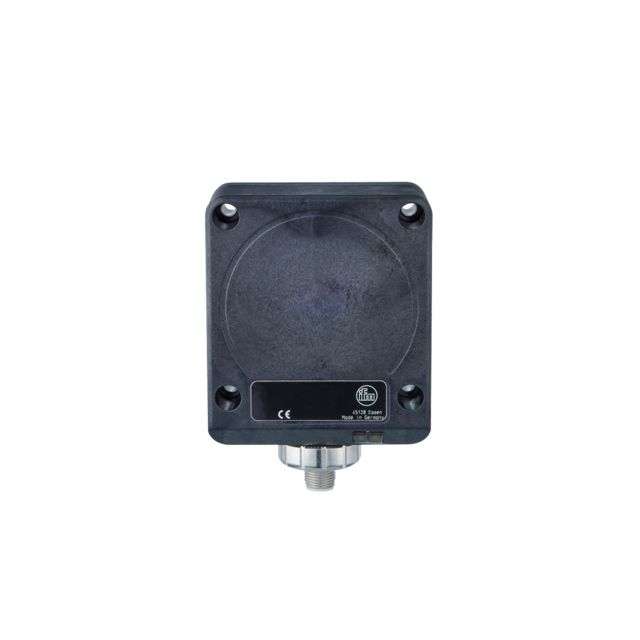

The ifm electronic inductive sensor is a robust solution designed for precise detection in industrial environments. With a sensing range of up to 50 mm, it excels at identifying metallic objects without direct contact, ensuring both safety and efficiency. Featuring a reliable NPN output function, this sensor operates within a voltage range of 10 to 36 VDC, making it versatile for various applications. Its rectangular housing is crafted to endure harsh conditions, while the IP67 protection rating guarantees reliable performance even in challenging settings. The innovative design supports flush mounting on DIN rails, which simplifies installation and integration into existing systems.

Long sensing range for use in conveying
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	50 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	92mm
IP Rating	IP67
Mounting Type	Flush
Switching Frequency	4 Hz
Series	ID5
Shielding	Shielded
Switching Current	200 mA
