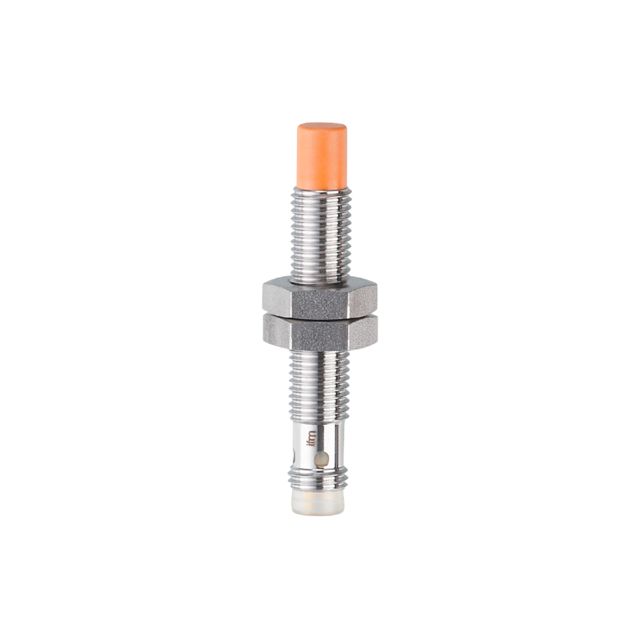

ifm IE5362, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc

Name: ifm IE5362, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: IE5362
Availability: InStock

Part Number : IE5362

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor stands at the forefront of precision sensing technology, making it ideal for a variety of industrial applications. Designed with robustness in mind, its stainless steel housing ensures durability while featuring a non-flush mountable design. The increased sensing range allows for enhanced detection capabilities, and its compact dimensions provide versatility in installation. Operating across a wide temperature range, this sensor is built to withstand challenging environments. Advanced features such as reverse polarity protection, short-circuit protection, and overload protection enhance its reliability. This intelligent sensor provides not only accurate performance but also a high degree of usability, making it a trusted choice for automation and control processes.

For use where space is restricted
Space-saving M8 connector
Resistant to oils and coolants
Clearly visible indication of the switching status
Robust housing for use in metalworking

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M8
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67
Length	50mm
Mounting Type	Non-Flush
Series	IE5
Switching Frequency	800 Hz
Switching Current	100 mA
Shielding	Unshielded
