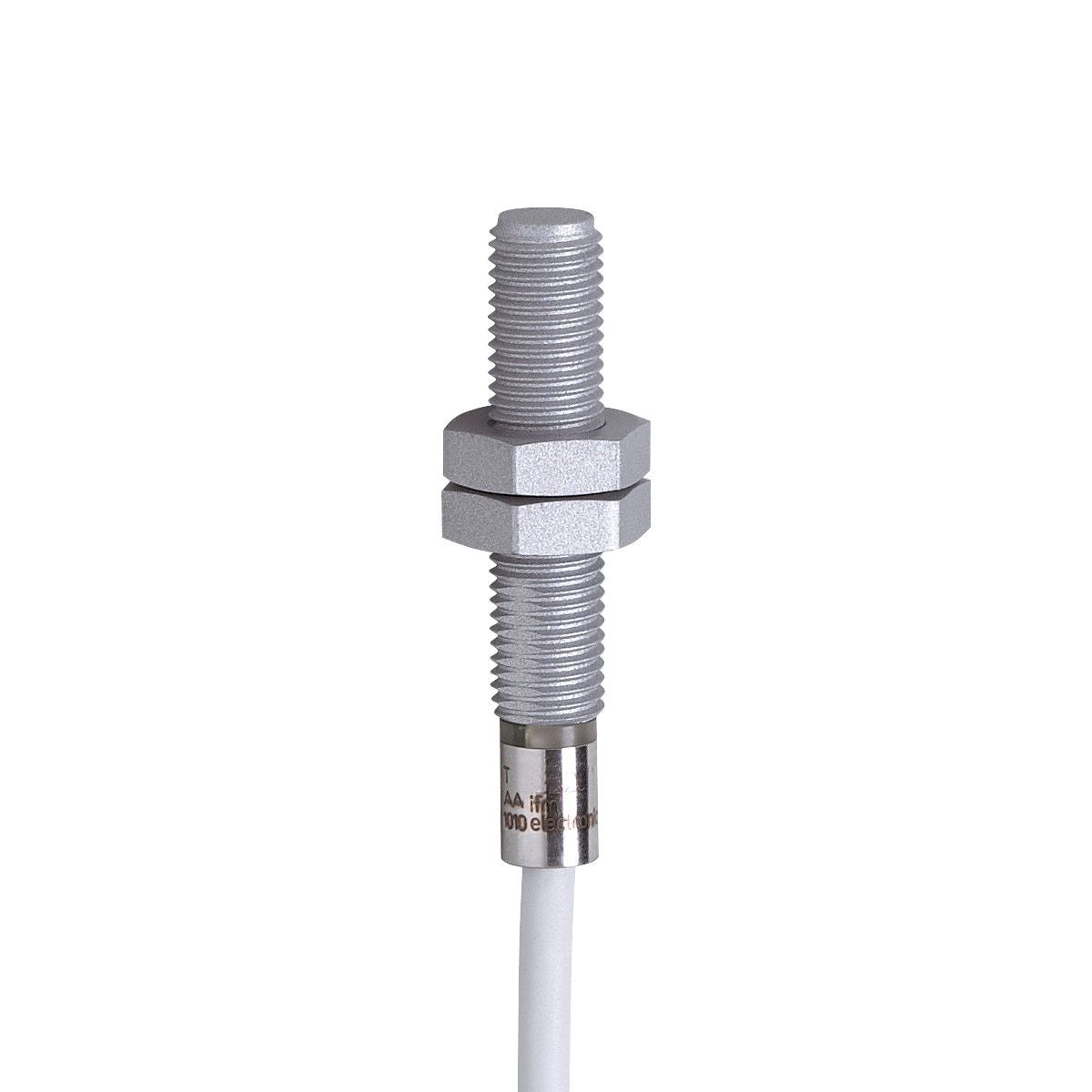

ifm IER204, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc

Name: ifm IER204, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc
Brand: ifm
SKU: IER204
Availability: InStock

Part Number : IER204

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive full-metal sensor has PNP-NPN electrical design. It has special features such as increased sensing range, full-metal housing, optical setting aid, anti-spatter.

Output function normally open
Sensing range 2 mm
Housing threaded type

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP/NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	45mm
Mounting Type	Flush
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Switching Current	100 mA
Maximum Switching Frequency	150Hz
Shielding	Shielded
Maximum Operating Temperature	+70°C
Switching Frequency	150 Hz

ifm IER204, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc

DOWNLOAD CATALOG
