ifm IES207, Inductive Threaded Barrel Proximity Sensor, M8, 6 mm Detection, NPN NC, 10 → 30 V dc

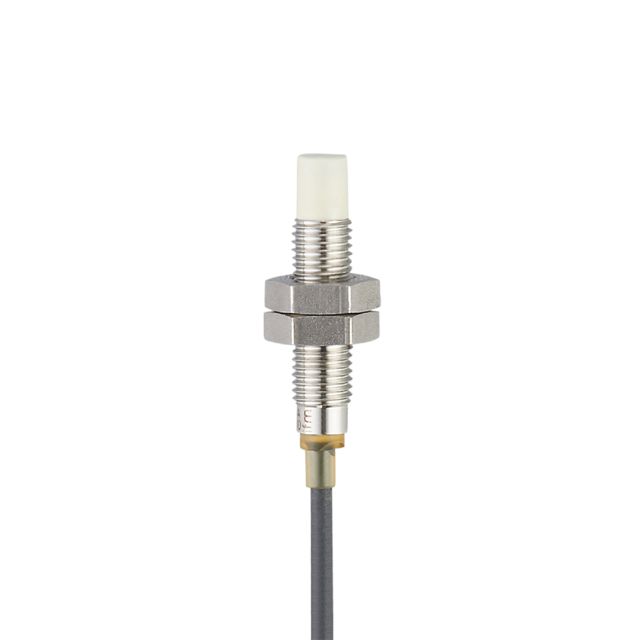

Name: ifm IES207, Inductive Threaded Barrel Proximity Sensor, M8, 6 mm Detection, NPN NC, 10 → 30 V dc
Brand: ifm
SKU: IES207
Availability: OutOfStock

Part Number : IES207

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed to excel in various industrial applications, particularly in factory automation. It showcases a compact threaded housing, combining robust performance with a sleek design. With a sensing range of 6mm, the sensor's magnetic field immunity assures reliability in challenging environments. Its advanced features include a permanently rated current output and short-circuit protection, making it adaptable for diverse tasks. The IEB3006-BNKG/V4A/K1/2M/PUR sensor operates effectively across a temperature spectrum from -40°C to 85°C, ensuring optimal functionality under extreme conditions. With an IP rating of up to IP69K, it is engineered to withstand high-pressure wash-downs and harsh elements typically found in industrial settings. This product demonstrates exceptional durability, accompanied by a UL approval, ensuring safety and compliance in various applications.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Correction factor 1 Constant sensing range on all metals
Very high switching frequency
Vibration and shock resistant

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Digital Switching Output Type	NPN
Output Function	NC
Connection Type	M8
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	37.5mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	100 mA
Switching Frequency	2 KHz
Series	IES
