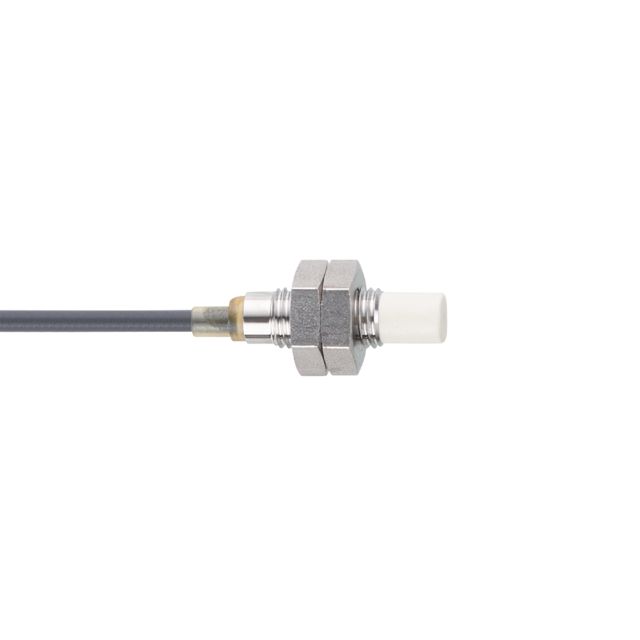

ifm IES245, Inductive Threaded Barrel Proximity Sensor, M8, 6 mm Detection, NPN NC, 10 → 30 V dc

Name: ifm IES245, Inductive Threaded Barrel Proximity Sensor, M8, 6 mm Detection, NPN NC, 10 → 30 V dc
Brand: ifm
SKU: IES245
Availability: OutOfStock

Part Number : IES245

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor designed for superior performance in diverse industrial environments. Its robust construction is suitable for mobile and harsh applications, offering a significantly increased sensing range. This sensor excels in factory automation, ensuring precise detection in critical tasks. Engineered to withstand extreme conditions, it operates within a wide temperature range and meets stringent protection standards, making it an ideal choice for various applications. The inclusion of advanced safety features such as reverse polarity and short-circuit protection enhances its reliability.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Output Function	NC
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	27.5mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	800 Hz
Series	IES
Switching Current	100 mA
