ifm IF5908, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO, 10 → 30 V dc

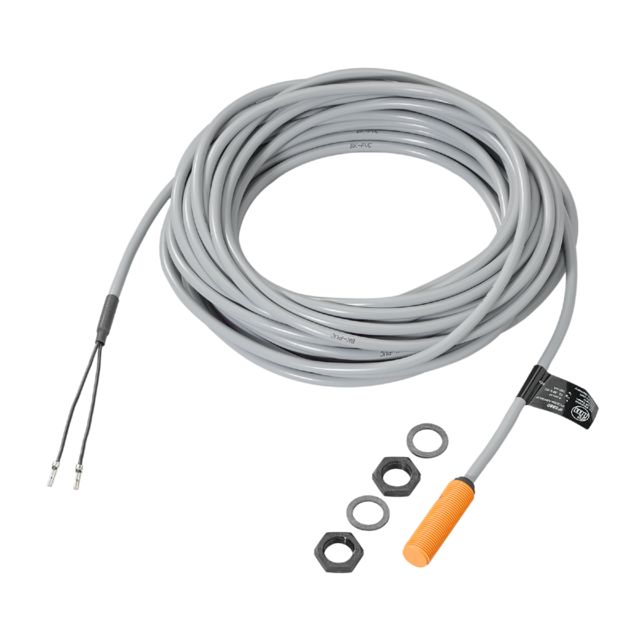

Name: ifm IF5908, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IF5908
Availability: OutOfStock

Part Number : IF5908

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor sets a new standard in performance and reliability, designed to seamlessly integrate into various automation applications. Featuring a sleek threaded housing, the sensor is ideal for detecting metallic objects with exceptional accuracy. Its robust electrical design offers both PNP and NPN output functions, ensuring compatibility across diverse systems. With an operating voltage range of 10 to 36 VDC, this sensor is well-suited for demanding industrial environments. Built to endure temperatures from -25°C to 80°C, it provides reliable operation in challenging conditions. Additionally, the sensor is protected with an IP67 rating, safeguarding it against dust and water ingress, making it a durable choice for your application needs.

Particularly short housing
For use where space is restricted
Very high switching frequency
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	40mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	1.5 kHz
Series	IF5
Switching Current	150 mA
