ifm IF6029, Inductive Threaded Barrel Proximity Sensor, M12, 0.2 → 2 mm Detection, PNP/NPN NO/NC, 15 →

Name: ifm IF6029, Inductive Threaded Barrel Proximity Sensor, M12, 0.2 → 2 mm Detection, PNP/NPN NO/NC, 15 →
Brand: ifm
SKU: IF6029
Availability: InStock

Part Number : IF6029

Availability: low stock

Detailed Description
Specifications
Downloads

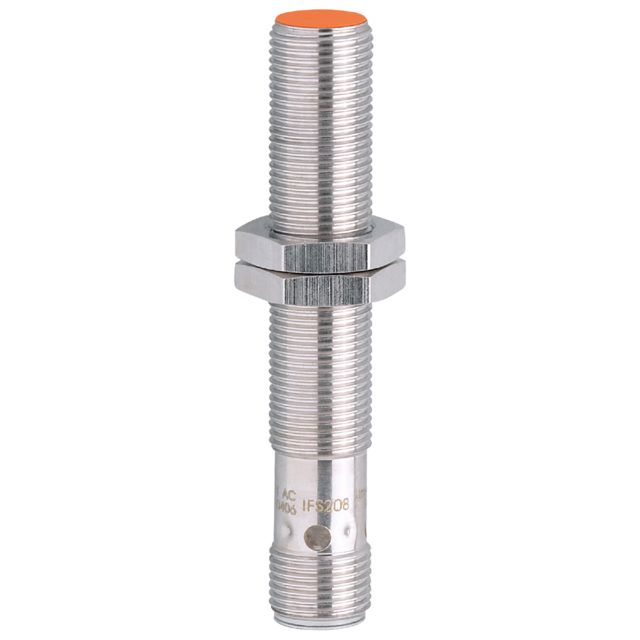

The ifm electronic inductive analogue sensor with IO-Link capability is engineered to deliver precision and reliability in various applications. Built with a threaded housing type, it seamlessly integrates into existing setups while ensuring robust performance under diverse environmental conditions. The sensor features an impressive operating voltage range and is designed to withstand mechanical stress, with proven shock and vibration resistance. Users will appreciate its easy installation process and versatility, making it suitable for numerous industrial applications. With its advanced communication interface, this sensor provides detailed diagnostic information to enhance operational efficiency, control processes effectively, and ensure optimal performance over time.

Precise linearized output signal
Very high repeatability
For non-contact distance measurement
Wide operating temperature range
Robust metal housing for use in harsh industrial environments

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	0.2 → 2 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M12
Supply Voltage	15 → 30 V dc
Length	70mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Flush
Switching Frequency	2 kHz
Switching Current	100 mA
Communication Protocol	IO-LINK
Series	IF6
Shielding	Shielded

ifm IF6029, Inductive Threaded Barrel Proximity Sensor, M12, 0.2 → 2 mm Detection, PNP/NPN NO/NC, 15 →

DOWNLOAD CATALOG

ifm IF6029, Inductive Threaded Barrel Proximity Sensor, M12, 0.2 → 2 mm Detection, PNP/NPN NO/NC, 15 →
