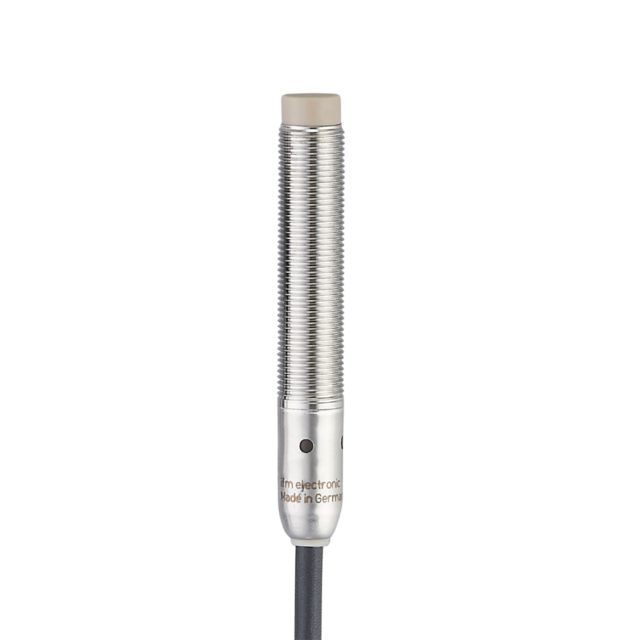

ifm IFT213, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, PNP/NPN NO, 10 → 30 V dc

Name: ifm IFT213, Inductive Threaded Barrel Proximity Sensor, M12, 7 mm Detection, PNP/NPN NO, 10 → 30 V dc
Brand: ifm
SKU: IFT213
Availability: InStock

Part Number : IFT213

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed for precision and durability in industrial applications. Combining advanced technology with a robust construction, this sensor offers increased sensing range to effectively detect metallic objects. Its stainless steel housing ensures reliability even in harsh environments, while the IP68 and IP69K protection classes promise resistance to dust and water ingress. This sensor not only boasts notable performance but also aids in operational efficiency, making it a valuable tool for regular cleaning processes in automation systems. Equipped with optical setting aids and indicating LEDs, installation and monitoring become hassle-free, ensuring that you maximise productivity.

Wide operating temperature range
Temperature shock resistant even in case of frequent temperature fluctuations
Robust stainless steel housing for use in the food and beverage industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	7 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	6m
Supply Voltage	10 → 30 V dc
Length	79mm
IP Rating	IP68, IP69K
Mounting Type	Non-Flush
Switching Frequency	700 Hz
Shielding	Unshielded
Series	IFT
Switching Current	100 mA
