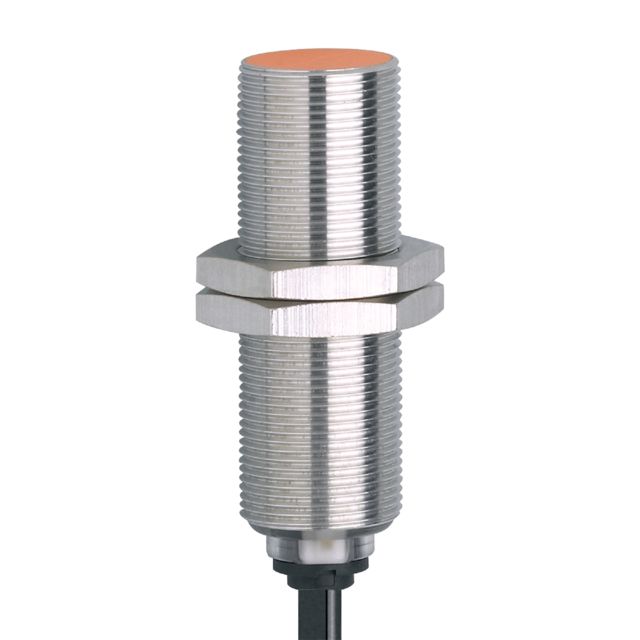

ifm IG0378, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20

Name: ifm IG0378, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: IG0378
Availability: InStock

Part Number : IG0378

Availability: low stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed for precise detection and reliable performance across various applications. With a sensing range of 5 mm, this device ensures accurate measurements in demanding environments. Featuring a robust M18 x 1 threaded housing, it is suitable for flush mounting, allowing for seamless integration into existing systems. Crafted with high-quality materials, including brass and PBT, this sensor delivers durability while maintaining a compact profile. Operating effectively in temperatures ranging from -25 to 80 degrees Celsius and rated with an IP67 protection class, it stands up to challenging conditions. Additionally, the integration of advanced technologies provides essential feedback with a yellow LED display, ensuring users are always informed of operational status.

With combined AC/DC output stage
Large operating voltage range
Two-wire technology
Wide operating temperature range
Robust metal housing for use in harsh industrial environments

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	5 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
Length	55mm
IP Rating	IP67
Mounting Type	Flush
Series	IG0
Switching Frequency	100 Hz
Shielding	Shielded
Switching Current	100 mA
