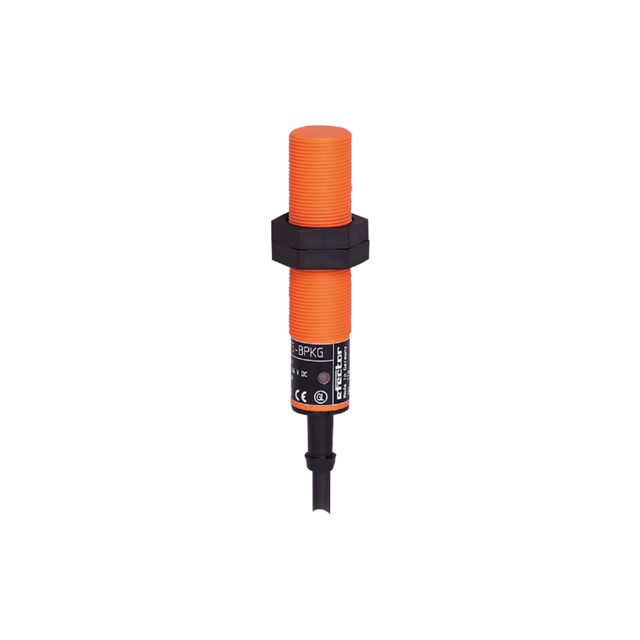

ifm IG5947, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc

Name: ifm IG5947, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc
Brand: ifm
SKU: IG5947
Availability: OutOfStock

Part Number : IG5947

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed for precision and reliability in industrial applications. Equipped with advanced technology, it provides exceptional performance in detecting metallic objects with a sensing range of up to 8 mm. Its durable threaded housing ensures easy installation while adhering to stringent environmental standards, boasting a protection class of IP67. With capabilities including reverse polarity and short-circuit protection, this sensor not only enhances operational safety but also promotes longevity in demanding settings. The carefully crafted dimensions and robust materials further contribute to its exceptional performance, positioning it as a top choice for professionals seeking quality and consistency in their sensor technology.

Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Clearly visible indication of the switching status

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	7m
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	80mm
Mounting Type	Non-Flush
Switching Current	250 mA
Series	IG5
Switching Frequency	300 Hz
Shielding	Unshielded
